24VAC Reversing Magnetic Contactor 3P 27A NEMA 1 MPN:CN55DN3TB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3674361

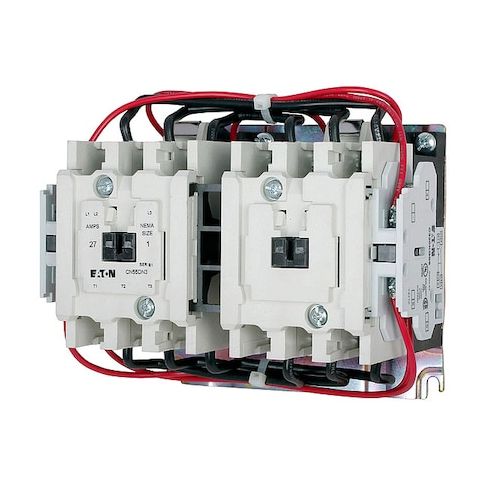

24VAC Reversing Magnetic Contactor 3P 27A NEMA 1
The Eaton 24VAC Reversing Magnetic Contactor is a reliable and efficient solution for controlling three-phase power in a variety of applications. With a 27A full load current and reversing capability, it can handle demanding industrial tasks such as motor control and conveyor systems. The contactor's compact design and NEMA 1 enclosure make it easy to integrate into panel-mounted applications. Suitable for use in 240V AC and 480V AC systems, it can handle up to 7.5hp and 10hp respectively. Ideal for use in manufacturing, material handling, and other industrial settings where precise control is required.
Top product features:
- 24VAC operation allows for use in a variety of AC power systems.
- Reversing capability enables the contactor to switch direction of power flow.
- Three-pole design supports three-phase power applications.
Top product applications:
- Power generation and distribution systems
- Industrial machinery control and automation
- Oil and gas industry applications
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size 1, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 27 A, Reversing Capability Reversing, Overall Height 5.05 in, Overall Width 2.56 in, Terminal Connection Type Screw Terminals, Frame Size D, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 2, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 6.40
- Package Height: 5.70
- Package Weight: 6.35
Product info last updated on March 31, 2026 3:27pm UTC
Category: Industrial Electrical Controls and Automation
