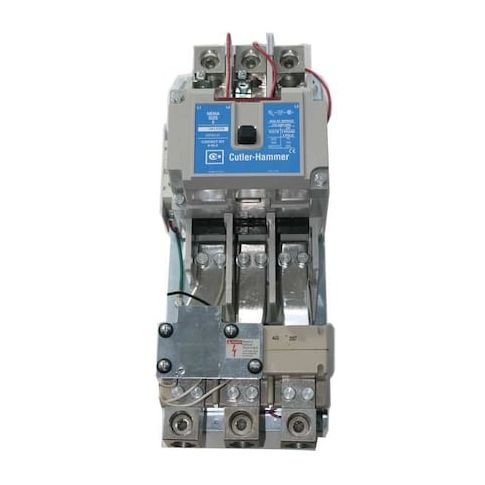

240VAC Non-Reversing Magnetic Contactor 3P 270A NEMA 5 MPN:CN15SN3B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3638336
240VAC Non-Reversing Magnetic Contactor 3P 270A NEMA 5
This Eaton 240VAC non-reversing magnetic contactor is a reliable and efficient solution for controlling electrical motors in a variety of applications. With a 270A full load current rating, it can handle high-power motors in industrial settings, such as manufacturing, mining, and oil and gas operations. The contactor's non-reversing capability ensures safe and controlled motor operation, making it ideal for applications where motor direction is critical. Its compact size and easy installation make it a convenient choice for panel mounting, and its NEMA 5 rating ensures compliance with industry standards.
Top product features:
- 240VAC Non-Reversing Magnetic Contactor has a 3-pole design
- Has a maximum full load current of 270 A for inductive loads
- Can handle up to 100 horsepower at 240V AC three-phase operation
Top product applications:
- Motor Control for Industrial Machinery
- Pump Control Systems
- Compressor Control Systems
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 5, Coil Voltage 220/240V AC, Number of Poles 3, Full Load Current - Inductive 270 A, Reversing Capability Non-Reversing, Overall Height 13.12 in, Overall Width 7.05 in, Terminal Connection Type Screw Terminals, Frame Size S, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 100 hp, Horsepower @ Three Phase - 480V AC 200 hp
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.70
- Package Width: 12.60
- Package Height: 9.40
- Package Weight: 27.90
Product info last updated on February 25, 2026 7:28pm UTC
Category: Industrial Electrical Controls and Automation
