24VAC Non-Reversing Magnetic Contactor 3P 45A NEMA 2 MPN:CN15GN3TB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3618404

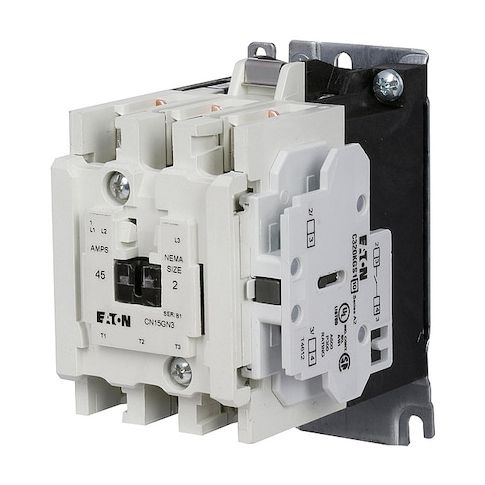

24VAC Non-Reversing Magnetic Contactor 3P 45A NEMA 2
This 24VAC non-reversing magnetic contactor from Eaton is a reliable and efficient solution for controlling three-phase power in a variety of industrial applications. With a 45A full load current and 15/25 horsepower ratings, it's perfect for use in motors, pumps, and other high-torque equipment. The contactor's compact design and screw terminal connections make it easy to integrate into existing systems. Its non-reversing capability ensures safe and consistent operation. Suitable for use in a range of industries, including manufacturing, oil and gas, and water treatment, this contactor provides reliable control and efficient power distribution.
Top product features:
- 24VAC coil voltage allows for low-voltage operation
- Three-pole design enables three-phase power handling
- Form 1NO auxiliary contact provides a normally open output
Top product applications:
- Motor Control
- Control of a 15 hp, 240V AC, 3-phase motor
- Control of a 25 hp, 480V AC, 3-phase motor
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 2, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 45 A, Reversing Capability Non-Reversing, Overall Height 3 in, Overall Width 2.56 in, Terminal Connection Type Screw Terminals, Frame Size G, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 25 hp
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.50
- Package Height: 5.60
- Package Weight: 3.10
Product info last updated on March 5, 2026 5:24am UTC
Category: Industrial Electrical Controls and Automation
