208VAC Non-Reversing Magnetic Contactor 3P 45A NEMA 2 MPN:CN15GN3EB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3608193

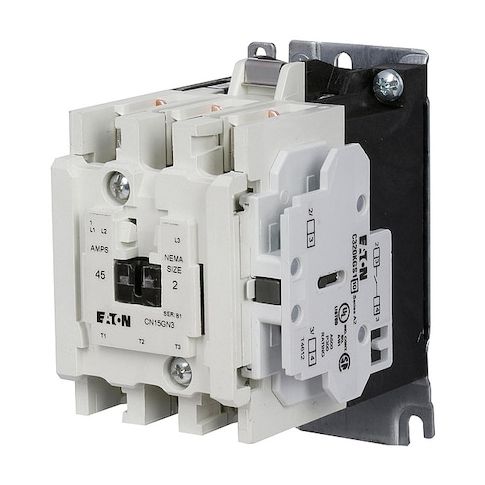

208VAC Non-Reversing Magnetic Contactor 3P 45A NEMA 2
Eaton's 208VAC Non-Reversing Magnetic Contactor is a reliable solution for controlling industrial equipment. This NEMA 2-rated contactor is designed for three-phase applications, providing a maximum current of 45A and a horsepower rating of 15 at 240V AC and 25 at 480V AC. Its compact size and panel-mount design make it ideal for use in a variety of settings, including manufacturing, oil and gas, and food processing. With its non-reversing capability and Form 1NO auxiliary contact, this contactor ensures safe and efficient operation of motors and other equipment. Its durability and reliability make it a valuable addition to any industrial control system.
Top product features:
- Non-Reversing Capability: The contactor is designed to operate in a single direction, preventing accidental reverse operation.
- Form 1NO Auxiliary Contact: The contactor includes a single normally open auxiliary contact that can be used to control additional devices or circuits.
- Screw Terminal Connection: The contactor features screw terminals for easy and secure connection to control wires, reducing the risk of loose connections and electrical faults.
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 2, Coil Voltage 208V AC, Number of Poles 3, Full Load Current - Inductive 45 A, Reversing Capability Non-Reversing, Overall Height 5.05 in, Overall Width 2.56 in, Terminal Connection Type Screw Terminals, Frame Size G, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 25 hp
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 27 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.50
- Package Height: 5.60
- Package Weight: 3.10
Product info last updated on February 4, 2026 1:41am UTC
Category: Industrial Electrical Controls and Automation
