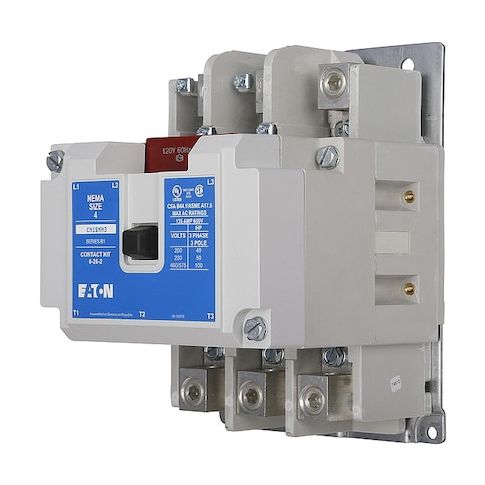

480VAC Non-Reversing Magnetic Contactor 3P 135A NEMA 4 MPN:CN15NN3C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3601236
480VAC Non-Reversing Magnetic Contactor 3P 135A NEMA 4
The Eaton 480VAC Non-Reversing Magnetic Contactor is a reliable and efficient solution for a wide range of industrial applications. Suitable for use in harsh environments, this NEMA 4-rated contactor features a robust design and high current capacity of 135A. Ideal for use in panel mounting, it's perfect for applications such as conveyor systems, pumps, and fans. With a high horsepower rating of 100hp at 480V AC, it can handle demanding loads with ease. The contactor also includes a Form 1NO auxiliary contact, providing additional functionality and flexibility. Its compact design and easy installation make it a great choice for many industries.
Top product features:
- 480VAC operation allows for high-voltage applications
- Three-phase operation enables efficient power handling
- One auxiliary contact provides additional control functionality
Top product applications:
- High-voltage industrial control systems
- Three-phase motor control circuits
- Heavy-duty machinery control systems
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 4, Coil Voltage 440/480V AC, Number of Poles 3, Full Load Current - Inductive 135 A, Reversing Capability Non-Reversing, Overall Height 9.11 in, Overall Width 7.05 in, Terminal Connection Type Screw Terminals, Frame Size N, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 50 hp, Horsepower @ Three Phase - 480V AC 100 hp
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 9.20
- Package Height: 16.00
- Package Weight: 19.90
Product info last updated on March 22, 2026 3:20am UTC
Category: Industrial Electrical Controls and Automation
