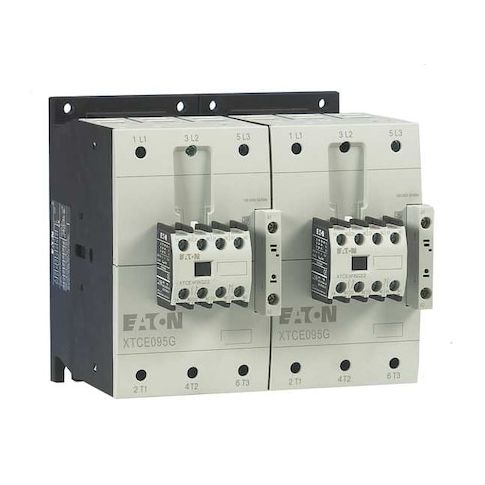

The EATON - IEC Magnetic Contactor is a reversing contactor that operates with a coil voltage of 24V AC. It features an auxiliary contact configuration of 1NO/1NC and has been certified by EN 60947, IEC 60947, CSA, and UL. The product complies with CE Marked standards and utilizes screw terminals for its electrical connection. With no enclosure NEMA rating, this device falls under the Frame F series/class/code and can operate at frequencies between 50-60 Hz.
Key Features:
- Reversing action: This feature allows the direction of motor rotation to be changed.
- Amperage Rating: Rated for operation with an inductive load of up to 80A and a resistive load of up to 110A.
- Auxiliary Contact Form: Comes with one normally open (NO) and one normally closed (NC) auxiliary contacts.
- Coil Voltage: Designed for use with a coil voltage of 24V AC, which is used to power the magnetic field.
- Certifications & Compliances: Has received certification from EN 60947, IEC 60947, CSA, UL and complies with CE Marked standards.
- Electrical Connection: Uses screw terminals for secure electrical connections.
- Horsepower Ratings: Horsepower compatibility varies based on phase type and voltage, ranging from a minimum of7.5 hp at single phase -120V AC to a maximum of75 hp at three-phase -600V AC
-Mounting Style: Can be mounted using DIN Rail or Panel methods providing flexibility during installation.
-Temperature Range : Rated for operation within temperature ranges between -13 Degrees F and122 Degrees F.
