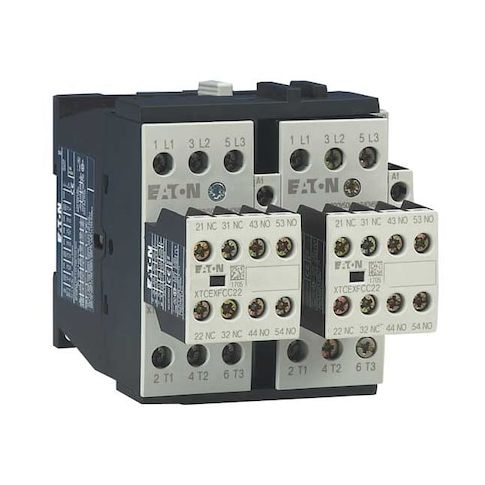

IEC Magnetic Contactor, 1NC/2NO, 24V AC, 3 P, Reversing, Screw MPN:XTCR025C21T
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient switching device for a variety of applications. Rated for 25A and 24V AC, it's perfect for use in control circuits, motor control, and power distribution systems. Its 3-pole reversing design allows for easy switching and control of loads. With four auxiliary contacts and an embedded surge suppressor, this contactor provides added protection and flexibility. Suitable for use in harsh environments, it's ideal for industrial, commercial, and residential applications, including HVAC, lighting, and conveyor systems. Its compact design and easy mounting make it a valuable addition to any control system.
Top product features:
- Reversing action allows for bidirectional control of a load
- Three-pole configuration enables the contactor to control multiple circuits simultaneously
- Embedded surge suppressor protects the contactor from voltage spikes and electrical surges
Top product applications:
- Industrial Automation Systems
- Motor Control Centers
- Power Distribution Units
The Eaton XT IEC contactor is an IEC magnetic contactor (an electrically operated switching device) rated for operation within specified electrical parameters. It is a 3-pole reversing contactor with a 24 V AC coil and a 25 A rating. It uses screw terminals, includes four auxiliary contacts, and has an embedded surge suppressor. The unit is configured with no enclosure (No Enclosure) and is rated for operation within the specified environmental and mounting conditions listed in the product specifications.
- Action: Reversing
- - Poles: 3
- - Coil Voltage: 24V AC
- - Amperage Rating: 25A
- - Auxiliary Contacts: 4 (2NO/1NC configuration
- 1NC/2NO form)
- - Embedded Surge Suppressor: Yes
- - Electrical Connection: Screw Terminals
- - Mounting Style: DIN Rail, Panel
- - Frame/Series: Frame C, XT
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Certifications/Compliances: IEC 60947
- UL Listed
- CSA Certified
- EN 60947
- CE Marked
- - Temperature Range: -13 Degrees F to 122 Degrees F
- - Dimensions: Width 7.5 in, Height 4.5 in, Depth 4.75 in
- - Frequency: 50/60 Hz
- - Includes Auxiliary Contacts: Yes
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.90
- Package Width: 5.20
- Package Height: 7.20
- Package Weight: 2.60
