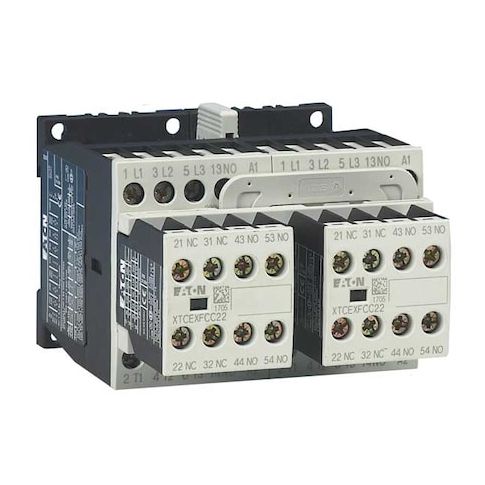

IEC Magnetic Contactor, 1NC/2NO, 24V DC, 3 P, Reversing, Screw MPN:XTCR012B21TD
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for a wide range of applications, including industrial automation, HVAC, and power distribution systems. Its 24V DC coil and 3-pole design provide a high level of control and flexibility, while its reversing action and 2NO/2NC contact configuration enable seamless operation in various environments. With certifications from UL, CSA, and EN 60947, this contactor meets the highest standards of safety and performance. Its compact design and screw terminal connections make it easy to integrate into existing systems, making it an ideal choice for industrial, commercial, and residential applications.
Top product features:
- Reversing action
- 3-pole, full-voltage reversing device
- Screw terminals for electrical connection
Top product applications:
- Industrial Automation
- This Eaton XT IEC contactor is suitable for industrial automation applications, such as controlling motors, pumps, and other equipment.
- Control Panels
The Eaton XT IEC contactor is an IEC magnetic contactor with reversing action and a 24 V DC coil. It is a 3-pole, full-voltage reversing device rated for operation within the specified standards. The unit uses screw terminals, mounts on DIN rails or panels, and is described without an enclosure. It carries multiple certifications including UL Listed, CSA Certified, EN 60947, and IEC 60947.
Key features
- - Action: Reversing
- - Poles: 3
- - Contact configuration: 2 NO, 2 NO
- - Auxiliary contacts: 4 total
- configuration 2NO/1NC
- form 1NC/2NO
- - Coil voltage: 24 V DC
- - Amperage ratings: Full Load Amps – Inductive 12 A
- Full Load Amps – Resistive 22 A
- - Mounting style: DIN Rail, Panel
- - Frame/Series/Code: Frame B
- Series XT
- Type: Full voltage reversing contactor
- - Enclosure: No Enclosure
- IP20
- - Electrical connection: Screw terminals
- - Certifications/Compliances: UL Listed
- CSA Certified
- CE Marked
- EN 60947
- IEC 60947
- RoHS
- - Dimensions: Width 5.75 in
- Height 5 in
- Depth 5.25 in
- - Operating temperature: Max 122°F
- Min -13°F
- - Product name: Eaton XT IEC contactor
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 5.30
- Package Height: 5.20
- Package Weight: 1.80
