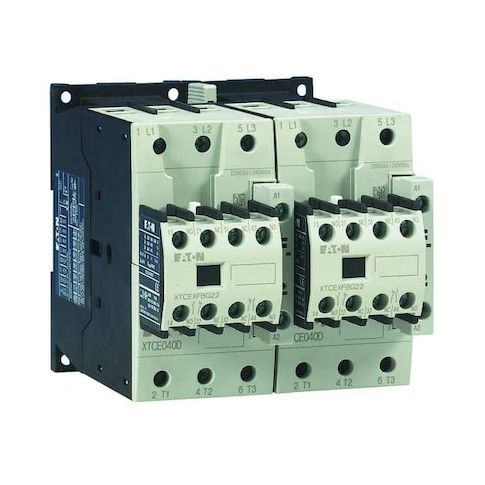

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw MPN:XTCR065D11A
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for a wide range of applications, from industrial control systems to commercial equipment. Its 3-pole, reversing design allows for smooth and seamless operation, while its 120V AC coil ensures high performance in demanding environments. The contactor's surge suppression component and robust construction provide added protection against electrical surges and wear. Ideal for use in control panels, machines, and equipment, this contactor is suitable for applications requiring high reliability and efficiency, such as HVAC systems, pumps, and conveyor systems, making it a valuable addition to any industrial or commercial setup.
Top product features:
- The Eaton XT IEC contactor is a 3-pole, reversing unit.
- It is equipped with auxiliary contacts as specified (2 contacts: 1 NO/1 NC).
- It contains a surge suppression component as part of its design.
Top product applications:
- Industrial Automation
- High-Reliability Power Distribution
- Electrical Panel Building
The Eaton XT IEC contactor is an IEC magnetic contactor rated for operation within specified electrical parameters. It is a 3-pole, reversing unit with a 120 V AC coil. Rated for continuous operation at the specified current ratings under normal conditions: Inductive 65 A
- Resistive 98 A. Equipped with auxiliary contacts as specified (2 contacts: 1 NO/1 NC). Contains a surge suppression component as part of its design. Wiring is via screw terminals, and the unit supports DIN Rail or Panel mounting with no enclosure is noted separately. It conforms to designated frame size and series specifications
- intended for use within rated voltage ranges. Physical dimensions are provided
- compatibility should be verified prior to installation.
- Action: Reversing
- - Coil Voltage: 120 V AC
- - Full Load Amps: Inductive 65 A
- Resistive 98 A
- - Aux Contacts: 2 (1 NO/1 NC)
- - Embedded Surge Suppressor: Yes
- - Electrical Connection: Screw Terminals
- - Mounting Style: DIN Rail, Panel
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Frame Size / Series: D / XT
- - Type: Full voltage reversing contactor
- - Certifications: UL Listed
- CSA Certified
- EN 60947
- IEC 60947
- RoHS
- CE Marked
- - Dimensions: Width 6.5 in
- Height 6 in
- Depth 9.5 in
- - Mounting Details: Mounting Hole Diameter 0.16 in
- Distances – Height 4.13 in
- Width 1.77 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 6.40
- Package Height: 5.80
- Package Weight: 4.70
