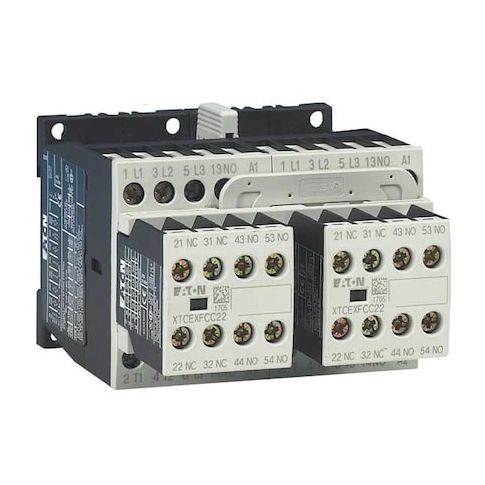

IEC Magnetic Contactor, 1NC/2NO, 208V AC, 3 P, Reversing, Screw MPN:XTCR009B21E

• The Eaton XT IEC contactor is rated for operation within IEC standards. It is a 3-pole reversing contactor with a 208V AC coil and screw terminals, intended for use in environments compatible with IP20 ratings. The unit belongs to the XT series (Frame B) and includes auxiliary contacts, aligning with its full-voltage reversing designation.

  - Action: Reversing

• - Coil Voltage: 208V AC
• - Amperage Rating: 9A
• - Full Load Amps – Inductive / Resistive: 9 A / 22 A
• - Poles: 3
• - Contact Configuration: 2 NO, 2 NO
• - Auxiliary Contacts: Yes (4 total)
• Configuration: 2NO/1NC
• Form: 1NC/2NO
• - Auxiliary Contact Configuration: 2NO/1NC
• - Auxiliary Contact Form: 1NC/2NO
• - Mounting Style: DIN Rail, Panel
• - Terminals: Screw
• - Embedded Surge Suppressor: Yes
• - Enclosure: No Enclosure (IP20)
• - Frame / Series / Class / Code: Frame B
• XT
• - Certifications: CSA Certified
• UL Listed
• EN 60947
• IEC 60947
• - Frequency: 60 Hz
• - Enclosure / NEMA Rating: No Enclosure
• - Dimensions (W x H x D): 5.75 in x 5 in x 5.25 in
• - Mounting Hole Diameter: 0.16 in
• - Mounting Hole Distance (Height x Width): 2.36 in x 1.38 in
• - Product Name: Eaton XT IEC contactor
• - Type: Full voltage reversing contactor
