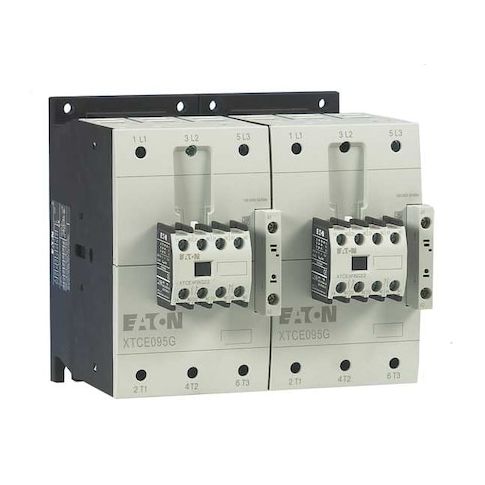

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Reversing, Screw MPN:XTCR080F11E
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for switching electrical circuits in a variety of applications. Designed for use in industrial and commercial settings, this 3-pole, reversing contactor is ideal for motor control and power distribution. With its embedded surge suppressor and CE marked for compliance, this contactor provides enhanced safety and protection. Its compact size and easy DIN rail mounting make it perfect for use in control panels and switchgear. Suitable for use in applications such as HVAC, conveyor systems, and material handling, the XT IEC contactor is a trusted choice for professionals.
Top product features:
- Switches between forward and reverse operation
- Has an embedded surge suppressor for electrical protection
- Has auxiliary contacts for additional control or monitoring capabilities
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution Systems
The Eaton XT IEC contactor is rated for switching within specified electrical parameters. It is a 3-pole, reversing type with a coil voltage of 208 V AC and an embedded surge suppressor, designed under the XT series with frame size F.
- Series / Frame: XT
- Frame: F
- Type: Full voltage reversing contactor
- Action: Reversing
- Reversing: Yes
- - Poles / Contacts: 3 poles
- Contact Configuration: 1 NO, 1 NC
- Auxiliary Contacts: 2 (1 NO, 1 NC)
- Includes Auxiliary Contacts: Yes
- - Coil / Frequency: Coil Voltage 208 V AC
- Frequency 60 Hz
- - Full Load Amps: Inductive 80 A
- Resistive 110 A
- HP Ratings: 25 hp @ 208V 3-phase
- 30 hp @ 240V 3-phase
- 60 hp @ 480V 3-phase
- 75 hp @ 575V 3-phase
- - Electrical / Mounting: Electrical Connection Screw
- Mounting Style DIN Rail, Panel
- - Protection / Enclosure: Embedded Surge Suppressor Yes
- IP Rating IP20
- NEMA Enclosure Rating No Enclosure
- Compliances: CE Marked
- Certifications: EN 60947
- IEC 60947
- CSA Certified
- UL Listed
- - Dimensions: Overall Width 6.54 in
- Overall Height 6.14 in
- Overall Depth 5.08 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 11.10
- Package Height: 7.90
- Package Weight: 14.50
