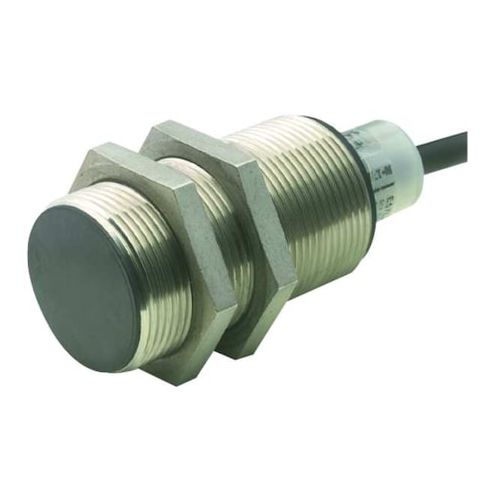

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded MPN:E57-30LE22-C1
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded
The Eaton Cylindrical Inductive Proximity Sensor is a reliable and versatile solution for detecting objects and changes in proximity. Suitable for use in harsh environments, this sensor features a stainless steel housing and operates within a wide temperature range of -13 to 158 degrees F. With a maximum detecting distance of 22 mm and a frequency of 300 Hz, it provides accurate and consistent results. Ideal for use in industrial settings, such as manufacturing, material handling, and food processing, this sensor is also suitable for use in medical and laboratory applications where cleanliness and reliability are paramount.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Semi-shielded design reduces electromagnetic interference
- Detects objects up to 22 mm away
Top product applications:
- Industrial Automation
- Material Handling Systems
- Food Processing Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 6 to 48V DC, Semi-Shielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 68 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 19 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 1.90
- Package Height: 6.20
- Package Weight: 0.53
