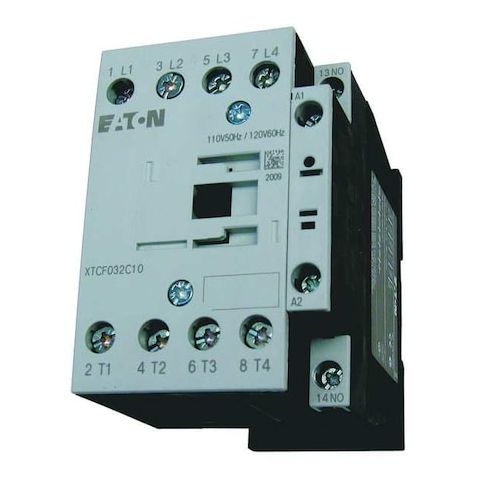

IEC Magnetic Contactor, 1NO, 208V AC, 4 P, Non-Reversing, Screw MPN:XTCF032C10E
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for controlling power circuits in various applications. This magnetic switch is designed for use in industrial settings, such as manufacturing facilities, and is suitable for controlling motors, pumps, and other high-current devices. Its non-reversing action ensures safe and controlled operation, while its 4-pole design provides flexibility in circuit configurations. With its compact size and DIN Rail or panel mounting capabilities, the XT contactor is an ideal choice for space-constrained applications, offering reliable performance and long lifespan.
Top product features:
- The Eaton XT IEC contactor features a single normally open auxiliary contact (1NO) for controlling and monitoring the main circuit.
- The unit is designed for DIN Rail or panel mounting without an enclosure, providing flexibility in installation options.
- The contactor has a surge suppression component to protect against voltage spikes and electrical surges.
Top product applications:
- Industrial automation and control systems
- Motor control and protection systems
- Power distribution and control panels
The Eaton XT IEC contactor is an IEC-standard magnetic switch designed to control power circuits. It features 4 poles and a 208 V AC coil, with a single normally open auxiliary contact (1NO) and screw terminals. The unit is non-reversing and rated for operation within the specified current range, and features a surge suppression component (if applicable)
- it is configured for DIN Rail or panel mounting without an enclosure.
- Coil voltage: 208 V AC
- - Action: Non-Reversing
- - Reversing: No
- - Poles: 4
- - Auxiliary contacts: 1 NO (Includes 1 auxiliary contact)
- - Contact configuration: 1 NO
- - Continuous ampere rating: 32 A
- - Full load amps: Inductive 18 A
- Resistive 45 A
- - Maximum voltage rating: 690 V AC
- - HP ratings: Provides power ratings based on standard configurations
- actual performance may vary depending on application conditions (1 Phase 230V 7.5 hp
- 1 Phase 240V 7.5 hp
- 3 Phase 208V 7.5 hp
- 3 Phase 240V 7.5 hp
- 3 Phase 480V 10 hp
- 3 Phase 575V 15 hp)
- - Frequency: 60 Hz
- - IP rating: IP20
- - Mounting style: DIN Rail, Panel
- - Termination: Screw terminals
- - Surge suppression component: Yes (if applicable)
- - Enclosure: No Enclosure
- - Certifications: certified according to relevant standards and regulations (specific certifications do not imply safety or suitability)
- - Compliances: Marked in accordance with applicable directives and standards (does not guarantee safety or performance)
- - Standards: CE
- CSA
- EN 60947
- IEC 60947
- RoHS
- UL Listed
- - Series / frame: XT / Frame C
- - Frame size: C
- - Dimensions (approx.): Height 2.75 in
- Width 4 in
- Depth 3.83 in
- Overall depth 4.5 in
- - Mounting holes: Diameter 0.16 in
- Hole distance (Height) 2.95 in
- Hole distance (Width) 1.38 in
- - Response time (AC/DC): 6-22 msec (AC closing)
- 8-14 msec (AC opening)
- 30 msec (DC opening)
- 47 msec (DC closing)
- - Product name: Eaton XT IEC contactor
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 4.00
- Package Height: 2.80
- Package Weight: 1.20
