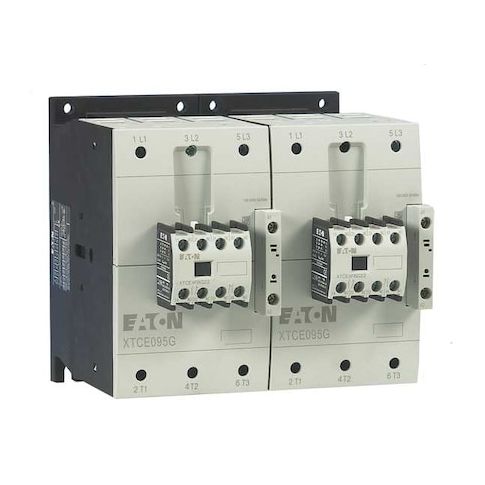

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Reversing, Screw MPN:XTCR095F11C
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and versatile solution for power circuit switching applications. With its 3-pole reversing action and 480V AC coil, it can handle a wide range of loads and scenarios. The device features screw terminals, auxiliary contacts, and an embedded surge suppressor for added protection and convenience. Suitable for use in various industries, including manufacturing, HVAC, and material handling, this contactor offers flexibility and efficiency in a compact design. Its IP20-rated enclosure and open design options make it easy to integrate into existing systems, while its certifications and compliance with international standards ensure a high level of quality and reliability.
Top product features:
- Reversing action allows the contactor to switch power circuits in both directions.
- Screw terminals provide a secure and easy-to-use connection method.
- Auxiliary contact pair features 1NO/1NC configuration for added functionality and control.
Top product applications:
- Power Generation and Distribution Systems
- Industrial Automation and Control Systems
- HVAC and Refrigeration Systems
The Eaton XT IEC contactor is an IEC Magnetic Contactor (3-pole) with reversing action rated for switching power circuits within specified parameters. It features a 480V AC coil and an auxiliary contact pair arranged as 1NO/1NC (2 auxiliary contacts total). The device uses screw terminals, can be mounted on a DIN Rail or panel, and has an IP20-rated enclosure or open design as specified. It is offered in Frame F (XT series) and includes an embedded surge suppressor. Certifications include CSA Certified
- UL Listed
- CE Marked
- EN 60947
- IEC 60947
- RoHS, and it operates within a temperature range of -13 to 122 degrees Fahrenheit.
- Action: Reversing
- - Poles: 3
- - Coil Voltage: 480 V AC
- - Full Load Amps (Inductive/Resistive): 95 A / 130 A
- - Auxiliary Contacts: 1NO/1NC (2 total)
- - Frame/Series: XT / Frame F
- - Mounting: DIN Rail, Panel
- - Terminals: Screw
- - Embedded Surge Suppressor: Yes
- - Enclosure: IP20-rated enclosure or open design as specified
- - Frequency: 50/60 Hz
- - Certifications: CSA Certified
- UL Listed
- CE Marked
- EN 60947
- IEC 60947
- RoHS
- - Type: Full voltage reversing contactor
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 11.00
- Package Height: 7.90
- Package Weight: 14.48
