IEC Mini Control Relay, 2NO/2NC, 24VDC, 10A MPN:XTRM10A22TD
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3210164

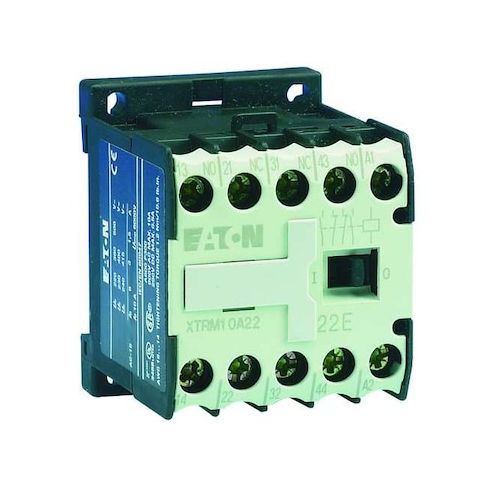

IEC Mini Control Relay, 2NO/2NC, 24VDC, 10A
Eaton's IEC Mini Control Relay is a compact and reliable solution for a wide range of applications. Suitable for use in industrial control systems, the relay features 2NO/2NC contacts and a 10A current rating. Its 24VDC coil voltage and 2.5A contact rating make it ideal for DC control systems. The relay's DIN rail mounting style and screw terminal connections simplify installation. With a low power consumption of 2.6W, it is an energy-efficient choice for applications such as machine control, automation, and process control. Its compact size and high reliability make it an excellent choice for use in a variety of industrial settings.
Top product features:
- 2NO/2NC contact form provides reliable and redundant switching capabilities.
- 10A current rating allows for high-power applications.
- 24VDC coil voltage enables easy integration with DC power systems.
Top product applications:
- Machine Control Systems
- Industrial Automation and Control Panels
- Power Distribution and Electrical Panel Boards
IEC Mini Control Relay, Current Rating 10 A, Contact Form 2NO/2NC, Contact Rating (DC) 2.5 A @ 24V, Coil Voltage 24V DC, Contact Rating (AC) 6 A @ 240V, Relay Style IEC, Electrical Connection Screw Terminal, Mounting Style DIN Rail, Power Consumption 2.6 W, IP Rating IP20, Frame Size 45 mm, NEMA Size Not Applicable, Compatible with Series XTRM Mini Control Relays, Maximum Operating Temperature 122 Degrees F, Frequency 60 Hz, Body Depth 2.05 in, Body Height 2.5 in, Body Width 1.77 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.90
- Package Height: 2.40
- Package Weight: 0.47
Product info last updated on February 17, 2026 8:40am UTC
Category: Industrial Electrical Controls and Automation
