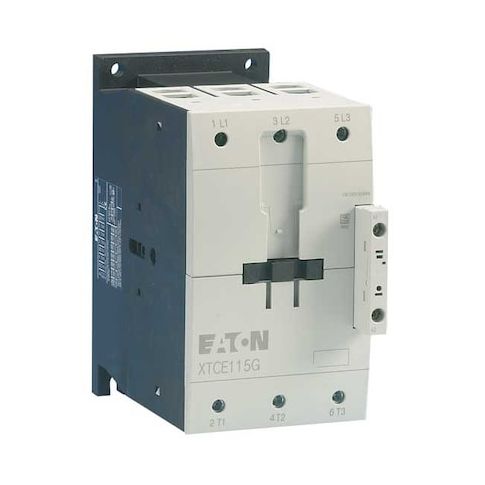

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 3 P, Non-Reversing, Screw MPN:XTCE170G00A
Free Shipping
In Stock
The Eaton XT IEC magnetic contactor is a reliable and efficient solution for switching power circuits in a variety of applications. With a 3-pole, non-reversing design and 120V AC coil, this contactor is ideal for use in industrial control systems, motor control, and power distribution. Its screw terminal connections and compact design make it easy to install and integrate into existing systems. The XT IEC contactor offers high mechanical and electrical operating durability, ensuring reliable performance in demanding applications. Suitable for use in a range of industries, including manufacturing, oil and gas, and more.
Top product features:
- The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 120 V AC coil.
- It uses screw terminals for electrical connection.
- It has a maximum voltage rating of 690 V AC.
Top product applications:
- Power distribution panels
- Control systems for industrial machinery
- Electrical power distribution systems for commercial buildings
The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 120 V AC coil. It uses screw terminals, has no auxiliary contacts, and is rated for switching power circuits within the specified standards and ratings.
- Poles: 3
- - Coil voltage: 120 V AC
- - Action: Non-Reversing
- - Auxiliary contacts: No
- - Electrical connection: Screw terminals
- - Contactor style/Series: IEC
- XT
- - Frame size: G
- - Frame/Code: Frame G
- Series XT
- - Maximum voltage rating: 690 V AC
- - Frequency: 50/60 Hz
- - IP rating: IP20
- - Enclosure: No Enclosure
- - Mounting style: DIN Rail, Panel
- - Certifications: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- CE Marked
- - Mechanical operating durability: 10,000,000 cycles
- - Electrical operating durability: 300 (AC-4 400V Ie)
- 800 (AC-1 400V Ie)
- 800 (AC-3 400V Ie)
- - Includes auxiliary contacts: No
- - Embedded surge suppressor: Yes
- - Reversing: No
- - Type: Full voltage non-reversing contactor
- - Overall dimensions: Width 7 in
- Height 4 in
- Depth 7 in
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.90
- Package Width: 3.90
- Package Height: 7.30
- Package Weight: 5.24
