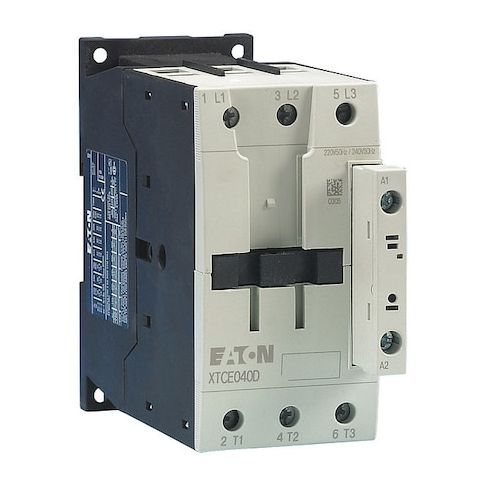

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 3 P, Non-Reversing, Screw MPN:XTCE040D00A
Free Shipping
In Stock
The Eaton XT IEC magnetic contactor is a reliable and efficient solution for controlling electrical circuits in various applications. Suitable for use in industrial settings, this 3-pole non-reversing contactor features a 120V AC coil and screw terminal wiring for easy installation. Its compact design and DIN rail or panel mounting options make it ideal for space-constrained areas. The contactor's high amperage rating and robust construction ensure reliable operation in demanding environments, while its IP20 rating provides protection against solid objects. Perfect for use in control panels, machinery, and equipment, this contactor offers a cost-effective and efficient solution for electrical control needs.
Top product features:
- Non-Reversing Action
- 3-Pole Configuration
- Embedded Surge Suppressor
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Panels
The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 120 V AC coil and no auxiliary contacts. It is rated for operation within the specified voltage and current ranges according to IEC standards and is configured for screw terminal wiring, DIN rail or panel mounting, and operation without an enclosure.
- Action: Non-Reversing
- - Poles: 3
- - Coil Voltage: 120V AC
- - Amperage Rating: 40A
- - Aux. Contact Configuration: No Auxiliary Contacts
- - Maximum Voltage Rating: 690V AC
- - Mounting Style: DIN Rail, Panel
- - Electrical Connection: Screw Terminals
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Frame Size / Series: Frame D / XT
- - Standards/Certifications: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- CE Marked
- RoHS
- - Embedded Surge Suppressor: Yes
- - Mechanical Operating Durability: 10000000
- - Electrical Operating Durability: 300 (AC-4 400V Ie)
- 800 (AC-1 400V Ie)
- 800 (AC-3 400V Ie)
- - Maximum Operating Temperature: 122 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Frequency: 50/60 Hz
- - Full Load Amps - Inductive: 40 A
- - Full Load Amps - Resistive: 60 A
- - Reversing: No
