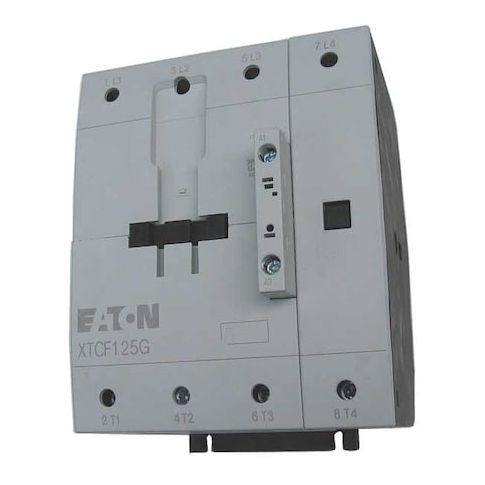

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw MPN:XTCF125G00TD

• The Eaton XT IEC contactor is an IEC magnetic contactor with 4 poles and a 24 V DC coil. It has no auxiliary contacts and is configured for non-reversing operation with a 125 A amperage rating, suitable for controlling power circuits in electrical control applications.

  - Operation: rated for non-reversing operation within specified configurations

• - Coil voltage: compatible with specified coil voltage
• - Maximum voltage rating: rated for operation up to the specified maximum voltage
• - Mounting: DIN Rail
• Panel
• - Electrical connection: Screw terminals
• - Frame/Series: Frame G
• Series XT
• Type: Full voltage non-reversing contactor
• - Enclosure: No Enclosure
• IP rating: IP20
• - Embedded surge suppressor: includes built-in surge suppression features
• - Certifications: UL Listed
• CSA Certified
• CE Marked
• EN 60947
• IEC 60947
• RoHS
• - Mechanical durability: 10,000,000 cycles
• - Dimensions: Width 5.24 in
• Height 6.69 in
• Depth 6.89 in
• - Mounting hole size/distance: Hole diameter 0.24 in
• Distance H 6.14 in
• Distance W 2.76 in
• - Operating temperature: -13 °F to 122 °F
• - Auxiliary configuration: No auxiliary contacts
• - Product name: Eaton XT IEC contactor
