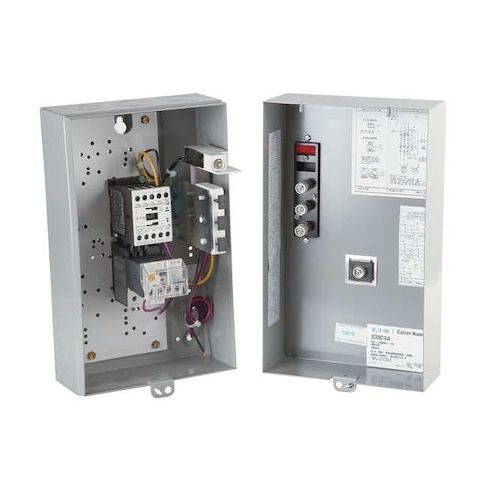

Nonreversing IEC Magnetic Motor Starter, 1 NEMA Rating, 120V AC, 3 Poles, 1NO/1NC MPN:ECX09C1AAA-R63/A
Nonreversing IEC Magnetic Motor Starter, 1 NEMA Rating, 120V AC, 3 Poles, 1NO/1NC
The Eaton IEC Magnetic Motor Starter is a reliable and efficient solution for controlling three-phase motors in industrial applications. With a non-reversing design, it provides a simple and safe way to start and stop motors, reducing the risk of accidents and equipment damage. The starter features electronic overload protection, adjustable current settings, and a compact design that makes it easy to install and maintain. Suitable for use in a variety of industries, including manufacturing, oil and gas, and food processing, this starter is an ideal choice for applications where motor control is critical, such as conveyor systems, pumps, and fans.
Top product features:
- Non-reversing design allows for single-speed operation.
- Three-phase capability enables the motor to operate with three-phase power.
- Electronic overload protection provides automatic shutdown in case of excessive current draw.
Top product applications:
- Industrial Automation Systems
- Heavy-Duty Motor Control Applications
- High-Torque Motor Starting Requirements
IEC Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 1.65 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 0.33 A, Trip Class 10A/10/20/30, Series XT, Number of Poles 3, Number of Auxillary Contacts 2, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO/1NC, Starter Style IEC, Reversing Capability Non-Reversing, Maximum Voltage Rating 690V AC, Coil Voltage 120V AC, Horsepower @ Three Phase - 600V AC 3/4 hp
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 22 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.40
- Package Width: 10.10
- Package Height: 8.40
- Package Weight: 9.90
Product info last updated on February 2, 2026 11:37am UTC
Category: Industrial Electrical Controls and Automation
