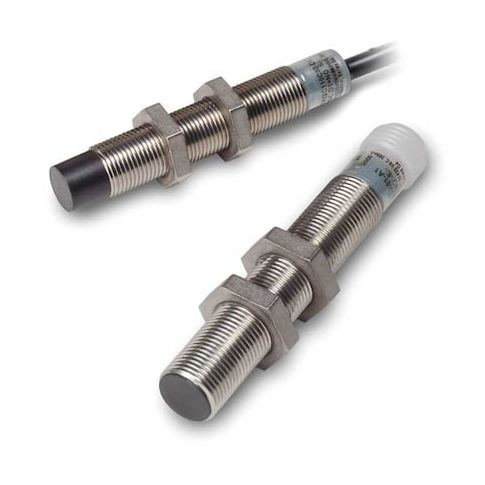

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E59-A12C108C02-CV
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This inductive cylindrical proximity sensor is a reliable and versatile solution for detecting objects in a variety of applications, including industrial automation, robotics, and material handling. Its compact stainless steel design and operating temperature range of -40 to 158°F make it suitable for use in harsh environments. The sensor's 8mm detecting distance and 2m cable length provide flexibility and accuracy. With output options of 0-10V or 0-20mA, it can be easily integrated into a wide range of systems. Ideal for use in food processing, pharmaceutical, and other industries where high sanitation standards are required.
Top product features:
- Cylindrical design for easy mounting in tight spaces
- Detects objects at a maximum distance of 8 mm
- Operates at a frequency of 100 Hz for reliable detection
Top product applications:
- Automotive applications due to its NEMA rating and IP67/IP69K rating for harsh environments
- Industrial automation and control systems for detecting metal objects
- Medical equipment and devices due to its stainless steel construction and ability to withstand high temperatures
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 15 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 0 to 10V, 0 to 20 mA, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode 0 to 20mA/0 to 10V, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 62 mm, Operating Temp. Range -40 Degrees to 158 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 1.80
- Package Height: 6.20
- Package Weight: 0.65
Product info last updated on March 27, 2026 11:13am UTC
Category: Industrial Electrical Controls and Automation
