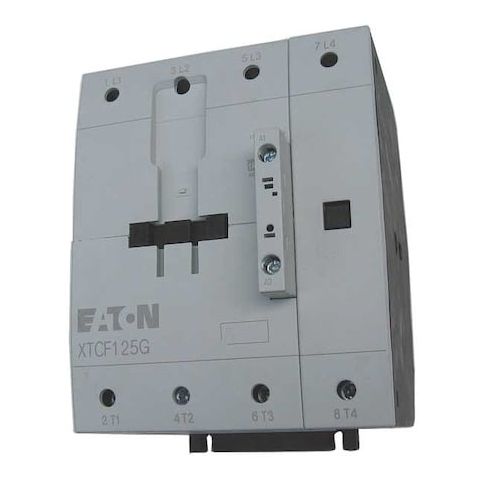

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw MPN:XTCF125G00A
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for controlling electrical circuits in industrial and commercial applications. With its four poles and 120 V AC coil, it provides a high level of switching functionality and durability. Its non-reversing action ensures precise control and reduces wear on the contactor. Suitable for DIN rail or panel mounting, this contactor is ideal for use in control panels, machinery, and equipment. Its compact design and robust construction make it a great choice for applications where space is limited and reliability is crucial, such as in manufacturing, HVAC, and automation systems.
Top product features:
- IEC Magnetic Contactor with 120V AC coil
- Uses an electromagnetic coil for switching functions
- Has four poles for multiple circuit control
Top product applications:
- Industrial Automation
- Motor Control
- Power Distribution
The Eaton XT IEC contactor is an IEC magnetic contactor (No Auxiliary Contacts) with a 120 V AC coil and four poles. It is rated for operation within specified parameters as per IEC standards
- uses an electromagnetic coil for switching functions. Intended for DIN rail or panel mounting
- does not include an enclosure.
- Product name: Eaton XT IEC contactor
- - Poles: 4
- - Action: Non-Reversing
- - Coil Voltage: 120 V AC
- - Amperage Rating: 125 A
- - Auxiliary Contacts: No
- - Electrical Connection: Screw Terminals
- - Embedded Surge Suppressor: Yes
- - Maximum Voltage Rating: 690 V AC
- - Frequency Rating: 50-60 Hz
- - Mounting Style: DIN Rail, Panel
- - Frame/Size: Frame G / Size G
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Certifications/Standards: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- CE Marked
- RoHS
- - Mechanical Durability: 10000000 cycles
- - Operating Temperature: -13°F to 122°F
- - Dimensions: Approximately 6.69 in H x 5.24 in W x 6.89 in D
- - Reversing: No
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.50
- Package Height: 8.00
- Package Weight: 6.40
