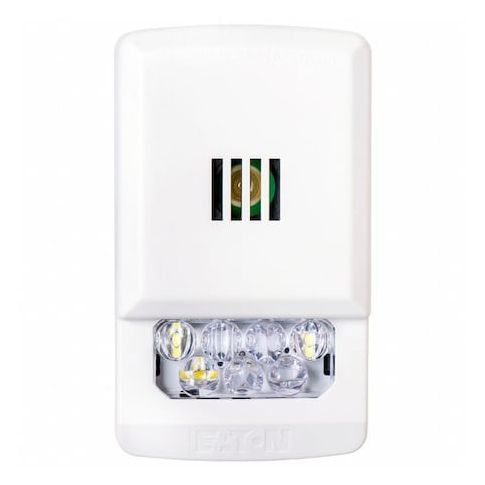

Horn Strobe, Horn, Continuous/Pulse, 24V, 86 dBA, Plastic, White, Wall Mount MPN:ELHSW-N

• EATON ELHSW-N is a 24V direct-wire horn strobe for indoor wall-mount signaling. It combines an audible horn and visual strobe in one white wall-mount unit, with continuous and pulse sound operation, selectable brightness, and is intended for fire and CO signaling applications.

  Key Features:

  • Audible and visual signaling device with horn and strobe functions.
  • Sound output: 86 dBA maximum at 10 ft.
  • Sound patterns: 2 patterns with continuous and pulse operation, including Continuous T3 and T3/T4.
  • Selectable light intensity settings: 15 cd, 30 cd, 75 cd, 110 cd, 135 cd, and 185 cd
  • rated light output: 185 cd.
  • LED strobe with rated lamp life of 100,000 hr.
  • Electrical: 24V operation, 5 W, direct-wire power source.
  • Operating current: 0.022 A @ DC, 0.030 A @ DC, 0.060 A @ DC, 0.086 A @ DC, 0.125 A @ DC, 0.185 A @ DC.
  • White plastic housing with clear Lexan lens.
  • Surface-mount wall installation
  • mounting plate included.
  • Operating temperature range: 32°F to 122°F.
  • Listings: FCC, RoHS, UL Listed, ULC.
