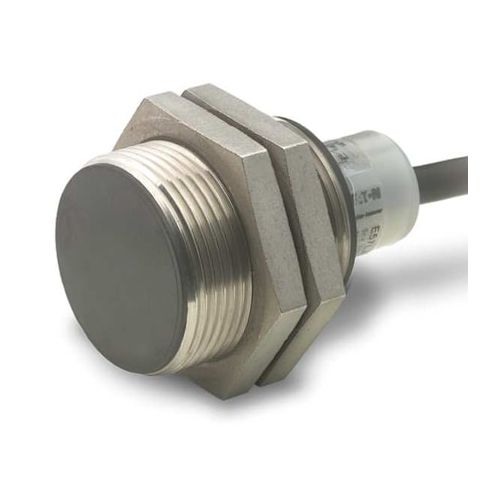

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 2 Wires, Shielded MPN:E57SBL30A4SA
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 2 Wires, Shielded
This inductive proximity sensor is designed for use in harsh industrial environments, featuring a stainless steel casing with IP67 and IP69K ratings for protection against dust and water. With a maximum detecting distance of 10mm and an operating frequency of 20Hz, it can detect metal objects with high accuracy. The sensor is powered by 40-250V AC and has a 2-wire output, making it easy to integrate into existing systems. Suitable for applications in food processing, pharmaceuticals, and other industries where cleanliness and reliability are crucial, this sensor provides a reliable and durable solution for detecting metal objects.
Top product features:
- Cylindrical shape allows for easy mounting and installation
- Detects objects up to 10 mm away
- Operates at a frequency of 20 Hz with a 2-wire output circuit
Top product applications:
- Automotive Industry: The inductive proximity sensor can be used in automotive applications such as detecting metal objects in the path of doors, trunk lids, or hood releases.
- Material Handling: The sensor can be used in material handling applications such as detecting metal objects on conveyor belts or in robotic arms.
- Medical Equipment: The sensor can be used in medical equipment such as detecting metal objects in the vicinity of MRI machines or other medical devices.
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 40 to 250V AC, Shielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 3 Pin Micro AC Connector, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 45 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 1.90
- Package Height: 5.00
- Package Weight: 0.20
Product info last updated on February 19, 2026 5:48am UTC
Category: Industrial Electrical Controls and Automation
