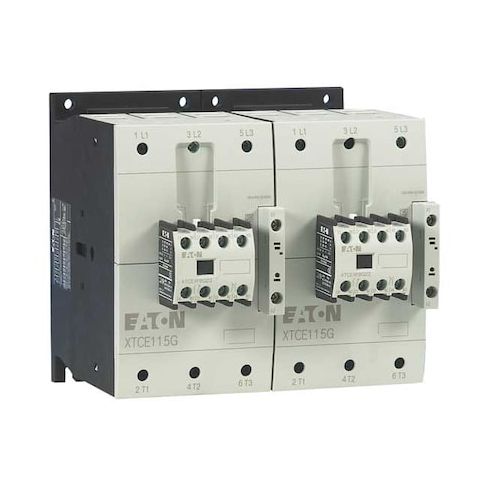

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw MPN:XTCR115G11TD

• The EATON - IEC Magnetic Contactor is a reversing contactor that operates with a coil voltage of 24V DC. It has a screw connection and includes auxiliary contacts. The contactor is rated for operation with an amperage of up to 115A for inductive loads and up to 160A for resistive loads. This product carries certifications from UL, EN 60947, CSA, and IEC 60947 standards. With no specific enclosure NEMA rating, it can be mounted on DIN rails or panels.

  Key features include:

• - Reversing action capability which allows the direction of motor rotation to be changed.
• - Auxiliary Contact Configuration: Comes with one normally open (1NO) and one normally closed (1NC) auxiliary contact.
• - Coil Voltage: Operates at a coil voltage of 24V DC.
• - Connection Type: Features screw terminals for secure electrical connections.
• - Certifications: Complies with UL Listed
• EN 60947
• CSA Certified
• IEC 60947 standards indicating that it has been tested according to these regulations.
• - Horsepower Ratings: Rated for use with motors having horsepower ratings within the range of10 hp @ Single Phase -120V AC up to100 hp @ Three Phase -480V AC & Three Phase -600V AC
• - Operating Temperature Range: Designed for operation within a temperature range of -13 Degrees F and122 Degrees F, compatibility varies based on environment conditions.
