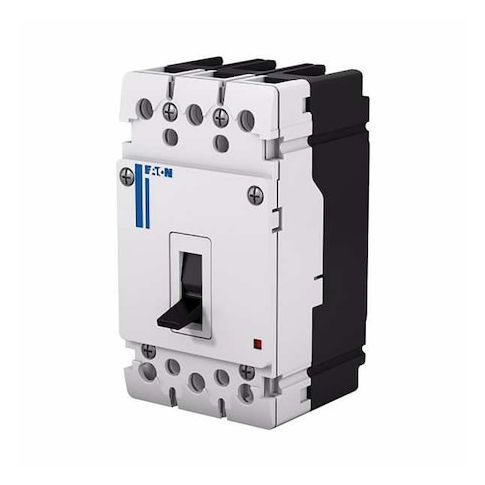

Circuit Breaker, PDG Series, 90A, 3 Pole, 600V AC, 65kA at 480V AC, A Curve MPN:PDG13M0090TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G300901868
Circuit Breaker, PDG Series, 90A, 3 Pole, 600V AC, 65kA at 480V AC, A Curve
The Eaton PDG Series 90A, 3-Pole Circuit Breaker is a reliable and efficient solution for protecting electrical circuits in a variety of applications. Suitable for use in commercial and industrial settings, this circuit breaker provides 65kA of short-circuit protection at 480V AC, ensuring safe and reliable operation. Its thermal-magnetic trip mechanism and instantaneous trip feature make it an ideal choice for applications requiring high levels of protection. With a compact design and easy installation, this circuit breaker is perfect for use in panelboards, switchboards, and other electrical distribution systems.
Top product features:
- Three-pole design for phase three connections
- Thermal magnetic trip type for enhanced safety and reliability
- Instantaneous trip fixed for rapid response to overcurrent conditions
Top product applications:
- Industrial Control Panels
- Commercial Electrical Distribution Systems
- High-Density Data Centers
Circuit Breaker, 90 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 125A/Frame 1, Height 5.5 in, Width 3 in, Depth 2.99 in, Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 6.00
- Package Weight: 3.00
Product info last updated on January 13, 2026 12:59pm UTC
Category: Circuit Protection
