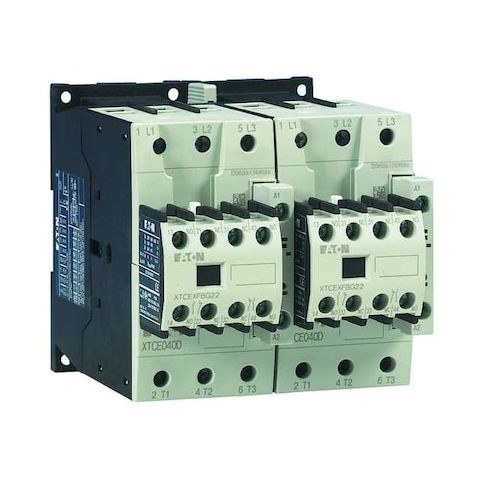

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Reversing, Screw MPN:XTCR040D11B
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for controlling and reversing current direction in various applications. With its 3-pole design and 240V AC coil, it can handle demanding load conditions and includes two auxiliary contacts for added functionality. Suitable for use in industrial settings, it supports DIN Rail or Panel mounting and features a surge suppression component for enhanced protection. Its compact design and screw terminal connections make it easy to integrate into existing systems, making it an ideal choice for applications such as motor control, conveyor systems, and HVAC equipment.
Top product features:
- Reversing action enables current direction reversal
- Screw terminals provide a secure and easy wiring connection
- Embedded surge suppressor protects against voltage spikes and electrical surges
Top product applications:
- Industrial Control Panel
- Motor Control Centers
- Power Distribution Units
The Eaton XT IEC contactor is a 3-pole IEC magnetic contactor with reversing action. It operates from a 240 V AC coil and is rated for operation within the specified load conditions. It includes 1 normally open and 1 normally closed auxiliary contact (2 total) and is part of the XT series with Frame Size D. The unit uses screw terminals for wiring, supports DIN Rail or Panel mounting, and includes a surge suppression component
- enclosure details are not specified.
- Action: Reversing — enables reversing current direction
- - Poles: 3
- - Coil Voltage: 240 V AC
- - Amperage Rating: 40 A
- - Full Load Amps - Inductive: 40 A
- - Full Load Amps - Resistive: 60 A
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Contact Configuration: 1 NO, 1 NC
- - Embedded Surge Suppressor: Yes
- - Mounting Style: DIN Rail, Panel
- - Electrical Connection: Screw Terminals
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Frame Size: D
- - Series: XT
- - Certifications/Standards: UL Listed
- IEC 60947
- CSA Certified
- EN 60947
- CE Marked
- RoHS
- - Frequency: 50/60 Hz
- - Maximum Operating Temperature: 122 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Overall Dimensions: Width 9.5 in
- Height 6 in
- Depth 6.5 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 6.40
- Package Height: 5.70
- Package Weight: 4.71
