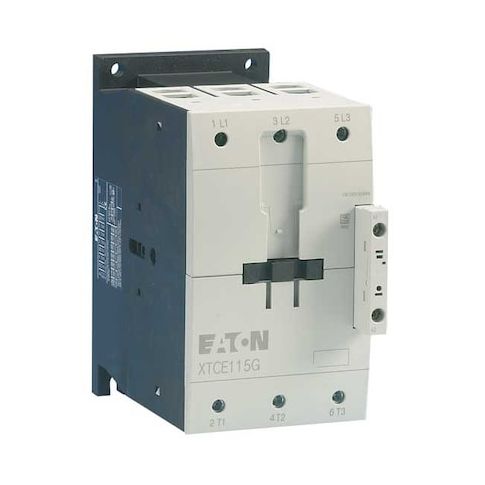

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 3 P, Non-Reversing, Screw MPN:XTCE115G00T
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for controlling electrical circuits in a variety of applications. Suitable for use in industrial and commercial settings, this 3-pole contactor features non-reversing operation and a 24V AC coil, making it ideal for applications where consistent and predictable control is required. Its compact design and screw terminals make it easy to install and integrate into existing systems. With a maximum voltage rating of 690V AC and a high mechanical durability of 10,000,000 cycles, this contactor is designed to withstand the demands of heavy use and harsh environments.
Top product features:
- Non-Reversing Operation
- Has a 24 V AC coil
- Uses Screw terminals
Top product applications:
- Motor Control Circuits
- General Purpose Control Circuits
- Power Distribution Systems
The Eaton XT IEC contactor is an IEC magnetic contactor (3-pole) with a 24 V AC coil and non-reversing operation. It uses screw terminals and has no auxiliary contacts, configured in frame size G as part of the XT series.
Key features:
- - Coil voltage: 24 V AC
- - Poles: 3
- - Action/Reversing: Non-Reversing
- - Auxiliary contacts: No auxiliary contacts (0 NO/0 NC)
- - Electrical connection: Screw terminals
- - Frame/Series: XT
- Frame Size: G
- - Maximum voltage rating: 690 V AC
- - IP rating: IP20
- - Enclosure: Does not include an enclosure
- - Mounting style: DIN Rail, Panel
- - Certifications: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- - CE Marked
- - Full Load Amps: Inductive 115 A
- Resistive 160 A
- - Frequency: 50/60 Hz
- - Mechanical durability: 10,000,000 cycles
- - Electrical durability: 300 (AC-4 400V Ie)
- 800 (AC-1 400V Ie)
- 800 (AC-3 400V Ie)
- - Dimensions: Height 6.69 in
- Width 4.37 in
- Depth 6.30 in
- - Product name: Eaton XT IEC contactor
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 7.40
- Package Height: 3.90
- Package Weight: 5.20
