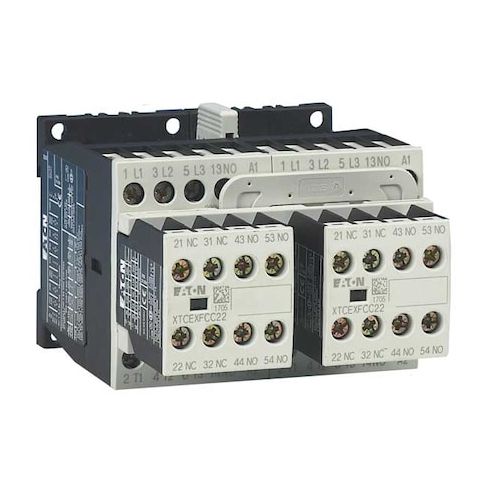

IEC Magnetic Contactor, 1NC/2NO, 240V AC, 3 P, Reversing, Screw MPN:XTCR009B21B

• The EATON - IEC Magnetic Contactor is a reversing contactor suitable for use in a variety of industrial and commercial settings. It operates with a coil voltage of 240V AC, and has an amperage rating of 9A for inductive loads and 22A for resistive loads. The contactor features a screw terminal electrical connection, intended to provide reliable electrical connection. With its Frame B size, it is rated for different horsepower based on the phase and voltage level. This product comes without an enclosure but has an IP20 rating indicating protection against solid objects up to 12mm.

  Key Features:

• - Reversing action: Enables change in motor direction.
• - Auxiliary Contact Configuration: Includes two normally open (2NO) and one normally closed (1NC) auxiliary contacts.
• - Certifications: Has received certifications from CSA, is UL Listed, and meets EN 60947
• IEC 60947 standards.
• - Coil Voltage: Rated for operation at a coil voltage of 240V AC.
• - Horsepower Ratings: Rated for various horsepower levels ranging from half hp @ single phase -120V AC up to seven-and-a-half hp @ three-phase -600V AC.
• - Operating Temperature Range: Rated for operation within temperature ranges between -13 Degrees F to +122 Degrees F.
• - Mounting Style: Versatile mounting options include DIN Rail or Panel mountings.
• - Number of Poles: Contains three poles for electrical circuit control.
