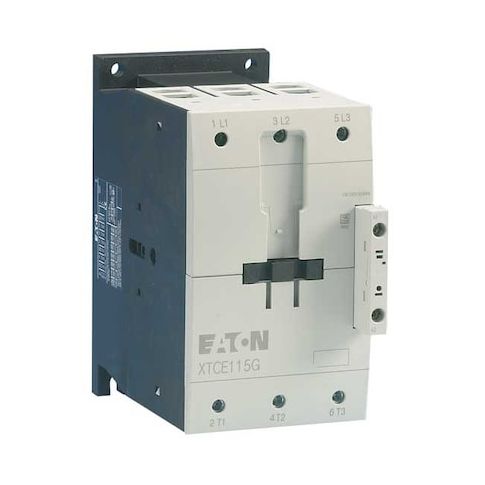

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 3 P, Non-Reversing, Screw MPN:XTCE115G00A
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in various applications. Suitable for use in industrial settings, this 3-pole, non-reversing contactor features a 120V AC coil and screw terminals, with no auxiliary contacts. Its built-in surge suppression component provides added protection, while its compact design makes it ideal for DIN Rail or panel mounting. With a wide range of load ratings and compliance with IEC and UL standards, this contactor is perfect for use in control panels, machinery, and other industrial equipment, ensuring safe and reliable operation in demanding environments.
Top product features:
- 3-pole, non-reversing device
- Non-reversing action
- Includes a built-in surge suppression component
Top product applications:
- Power distribution systems
- Industrial control systems
- Electrical panelboards
The Eaton XT IEC contactor is an IEC magnetic contactor rated for switching power circuits within specified parameters. It is a 3-pole, non-reversing device with a 120V AC coil and screw terminals, and includes no auxiliary contacts. Includes a built-in surge suppression component (note: does not guarantee effectiveness) and conforms to IEC standards (note: compliance does not imply performance guarantees), identified by the XT series frame (Frame G) and DIN Rail/panel mounting. The unit is rated for operation within specified load currents as per manufacturer specifications (Inductive 115 A
- Resistive 160 A), with a maximum voltage rating of 690V AC and IP20 protection, and it ships without enclosure.
Key features
- - Poles and action: 3 poles
- Non-Reversing
- Reversing: No
- No auxiliary contacts
- - Coil and voltage: 120V AC
- - Load ratings: Rated for operation within specified load currents as per manufacturer specifications (Inductive 115 A
- Resistive 160 A)
- - Electrical connections: Screw terminals
- - Enclosure and mounting: IP20
- No enclosure
- Mounting style DIN Rail, Panel
- - Series/size: XT series
- Frame G
- - Certifications/compliance: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- - Additional specs: Includes a built-in surge suppression component (note: does not guarantee effectiveness)
- Compliance: CE Marked
- RoHS
- - Frequency: 50/60 Hz
- - Operating temperature: -13°F to 122°F
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 3.90
- Package Height: 7.40
- Package Weight: 5.15
