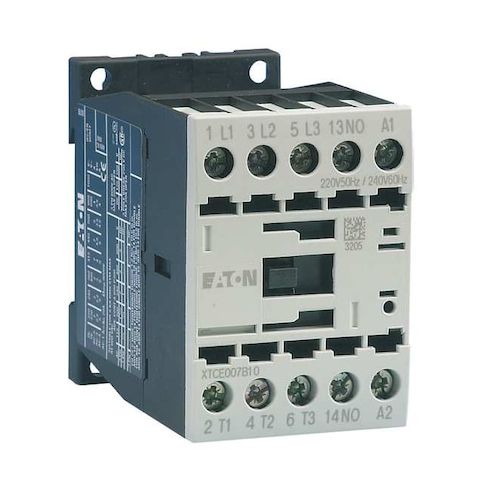

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw MPN:XTCE015B10A

• The Eaton XT IEC contactor is an IEC magnetic contactor with 3 poles that operates in a non-reversing configuration. It features a 120 V AC coil and a single normally open auxiliary contact, wired via screw terminals. This XT-series contactor (Frame B) is rated for operation within the specified voltage range of 690 V AC and does not include an enclosure, with an IP20 protection rating.

  Key features

• - Poles and auxiliary: 3 poles
• 1 normally open auxiliary contact (1NO)
• - Coil and timing: Coil voltage 120 V AC
• Frequency 50/60 Hz
• Non-Reversing
• - Terminals and mounting: Screw terminal connections
• Mounting style DIN Rail, Panel
• - Series/frame: XT series
• Frame B
• - Max voltage and current: Maximum voltage rating 690 V AC
• Full Load Amps: Inductive 15 A
• Resistive 22 A
• - Durability: Electrical durability rating under test conditions 1,200,000 cycles
• Mechanical durability rating under test conditions 10,000,000 cycles
• - Protections and standards: Includes a surge suppression feature (if applicable)
• IP20
• conforms to these standards and certifications (without implying guarantee of performance)
• - Enclosure and mounting details: does not include an enclosure
• - Dimensions: Depth 2.95 in
• Height 2.68 in
• Width 1.77 in
• - Temperature range: Maximum operating temperature 122 Degrees F
• Minimum operating temperature -13 Degrees F
• - Additional details: Includes auxiliary contacts Yes
• Mounting hole diameter 0.16 in
• Mounting hole distance (Height) 2.36 in
• Mounting hole distance (Width) 1.38 in
