Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 2 Wires, Unshielded MPN:E57SBL30A4EA

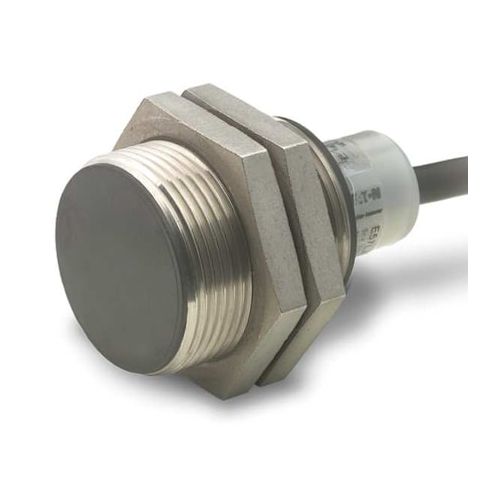

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 2 Wires, Unshielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects in a variety of applications. With a stainless steel construction and IP67 and IP69K ratings, it can withstand harsh environments and extreme temperatures. Suitable for use in industrial settings, it can detect objects up to 15mm away and operates at frequencies of up to 20Hz. The 2-wire output makes it easy to integrate into existing systems, and its compact size and lightweight design make it ideal for use in tight spaces. Perfect for use in manufacturing, material handling, and other industrial processes.
Top product features:
- Cylindrical shape for easy installation in tight spaces
- Detects objects up to 15 mm away
- Operates at temperatures from -13 to 158 degrees Fahrenheit
Top product applications:
- Automotive Industry for detecting metal objects in engine compartments or under the hood
- Food Processing for detecting metal objects in conveyor systems or on production lines
- Medical Equipment for detecting metal objects in MRI machines or other sensitive equipment environments
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 40 to 250V AC, Unshielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 3 Pin Micro AC Connector, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 49 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 2.00
- Package Height: 5.00
- Package Weight: 0.20
Product info last updated on January 13, 2026 1:21pm UTC
Category: Industrial Electrical Controls and Automation
