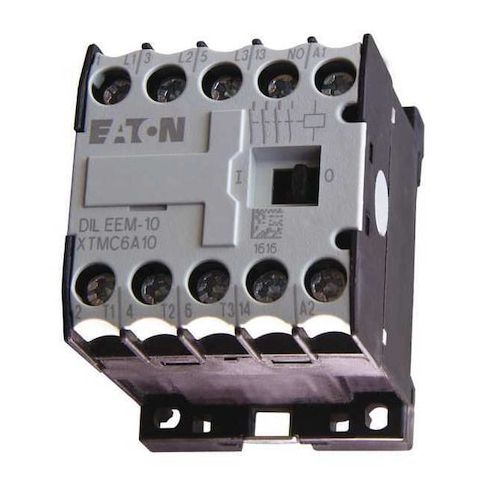

IEC Miniature Magnetic Contactor, 1NO, 240V AC, 3 P, Non-Reversing, Screw MPN:XTMC6A10B
Free Shipping
In Stock
The Eaton XT IEC Miniature Magnetic Contactor is a compact, electromagnetically operated switch ideal for controlling lower-power circuits in various applications. Its non-reversing design ensures reliable control, while its 3-pole configuration provides flexibility in circuit management. Suitable for installation in accordance with standard mounting practices, this miniature contactor is perfect for use in industrial, commercial, and residential settings where space is limited. Its small size and high current capacity make it an excellent choice for controlling motors, pumps, and other low-power devices, providing efficient and reliable control in a range of applications.
Top product features:
- Compact design suitable for installation in accordance with standard mounting practices for IEC miniature contactors.
- Electromagnetically operated switch used to control lower-power circuits.
- Embedded surge suppressor to protect the product from electrical surges.
Top product applications:
- Automotive Systems
- Industrial Automation
- Power Generation Systems
The Eaton XT IEC Miniature Magnetic Contactor is a compact, electromagnetically operated switch used to control lower-power circuits. It is non-reversing and 3-pole with a 240 V AC coil and 1 normally open auxiliary contact. The unit uses screw terminals and can be mounted on DIN rail or panel
- its small size is suitable for installation in accordance with standard mounting practices for IEC miniature contactors.
Key features
- - Coil voltage: 240 V AC
- - Action: Non-Reversing
- - Poles: 3
- - Main contact configuration: 1 NO
- - Auxiliary contact: 1 NO
- - Frame: A (Frame Size A)
- - Series: XT
- - Enclosure: No Enclosure
- - IP rating: IP20
- - Maximum voltage rating: 690 V AC/DC
- - Full Load Amps: Inductive 6 A
- Resistive 20 A
- - Mounting style: DIN Rail, Panel
- - Termination: Screw terminals
- - Embedded surge suppressor: Yes
- - Certifications/Standards: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- CE Marked
- RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.00
- Package Height: 2.30
- Package Weight: 0.39
