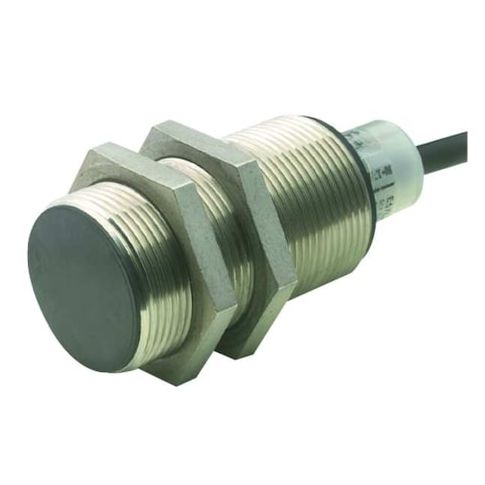

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded MPN:E57-30LE22-C
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded
Eaton's cylindrical inductive proximity sensor is a reliable and versatile solution for detecting objects in harsh environments. Its semi-shielded design and stainless steel construction make it ideal for use in food processing, pharmaceutical, and other industries where sanitation and durability are crucial. With a maximum detecting distance of 22 mm and a wide operating temperature range, this sensor can be used in a variety of applications, including conveyor belt monitoring and tank level detection. Its 3-wire NPN output and 6-48V DC power requirement make it easy to integrate into existing systems.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Semi-shielded design reduces electromagnetic interference
- Detects objects up to 22 mm away with a 300 Hz operating frequency
Top product applications:
- Industrial Automation
- Material Handling Systems
- Automotive Manufacturing
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 6 to 48V DC, Semi-Shielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 68 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 4.30
- Package Height: 1.70
- Package Weight: 0.65
Product info last updated on January 13, 2026 1:19pm UTC
Category: Industrial Electrical Controls and Automation
