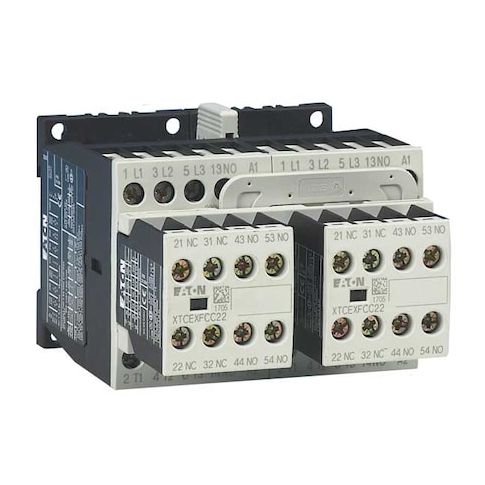

IEC Magnetic Contactor, 1NC/2NO, 24V DC, 3 P, Reversing, Screw MPN:XTCR009B21TD
Free Shipping
In Stock
The Eaton XT IEC magnetic contactor is a reliable and versatile solution for controlling power circuits in a variety of applications. With its 3-pole, full-voltage reversing design and 24V DC coil, this contactor is ideal for use in industrial automation, HVAC systems, and other power management applications. Its compact footprint and screw terminals make it easy to install and integrate into existing systems, while its IP20 rating and certifications ensure compliance with industry standards. By providing precise control and efficient operation, the XT IEC contactor helps reduce energy consumption and increase overall system reliability.
Top product features:
- Reversing operation allows for bidirectional control of power circuits
- Utilizes screw terminals for wiring
- IP20-rated for protection against solid objects and fingers
Top product applications:
- Control of power circuits in industrial automation systems
- Control of power circuits in commercial and residential building systems
- Control of power circuits in data centers and server rooms
The Eaton XT IEC contactor is a 3-pole, full-voltage reversing IEC magnetic contactor with a 24 V DC coil. It is intended for use in controlling power circuits within specified parameters
- utilizes screw terminals for wiring. The device mounts on DIN rail or panel
- IP20-rated according to applicable standards. It is part of the XT series and uses Frame B with a compact footprint.
Key features
- - Operation: Reversing
- - Poles: 3
- - Coil Voltage: 24 V DC
- - Amperage/Full Load: Inductive 9 A
- Resistive 22 A
- - Auxiliary contacts: 4 total
- Configuration includes 2NO/1NC and 1NC/2NO
- - Enclosure: None
- IP20-rated
- - Mounting: DIN Rail, Panel
- - Connection: Screw terminals
- - Frame/Series/Type: Frame B
- Series XT
- Type Full voltage reversing contactor
- - Certifications: CSA, UL, CE compliance
- RoHS
- - Dimensions: 2.68 in height x 3.54 in width x 4.92 in depth (68 mm x 90 mm x 117 mm)
- - Operating temperature: Rated for operation within the specified temperature range of -13°F to 122°F
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 5.20
- Package Height: 11.60
- Package Weight: 7.80
