Nonreversing IEC Magnetic Motor Starter, 1 NEMA Rating, 24V DC, 3 Poles, 1NO/1NC MPN:ECX09C1QBA-R63/A
Nonreversing IEC Magnetic Motor Starter, 1 NEMA Rating, 24V DC, 3 Poles, 1NO/1NC

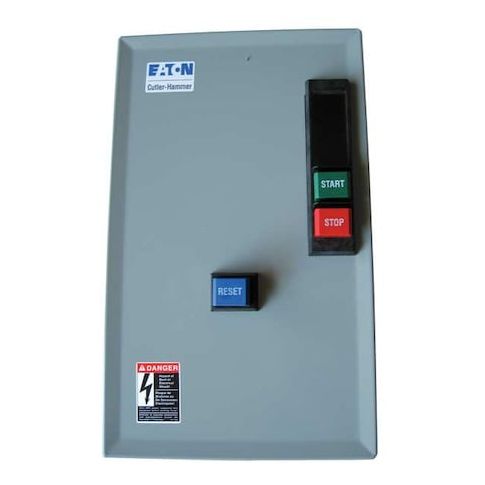

The Eaton Nonreversing IEC Magnetic Motor Starter is a reliable and efficient solution for controlling three-phase motors. This starter is ideal for applications requiring precise control, such as in industrial automation, manufacturing, and process control. Its electronic overload protection and trip class options ensure safe and reliable operation. The starter's compact design and surface mounting style make it easy to integrate into existing systems. With a maximum voltage rating of 690V AC, this starter is suitable for a wide range of applications, including HVAC, water treatment, and material handling systems. It ships in 22 days.
Top product features:
- Non-reversing operation for applications where motor direction does not need to be changed.
- Includes auxiliary contacts for additional control functions.
- Electronic overload protection with adjustable current setting for customizable motor protection.
Top product applications:
- Industrial Automation Systems
- Motor Control Panels
- Power Distribution Systems
IEC Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 1.65 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 0.33 A, Trip Class 10A/10/20/30, Series XT, Number of Poles 3, Number of Auxillary Contacts 2, Phase Three, Operator Push Button, Operator Function Start/Stop, Mounting Style Surface, Auxiliary Contact Form 1NO/1NC, Starter Style IEC, Reversing Capability Non-Reversing, Maximum Voltage Rating 690V AC
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 22 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 10.10
- Package Height: 8.40
- Package Weight: 10.22
Product info last updated on January 13, 2026 1:49pm UTC
Category: Industrial Electrical Controls and Automation
