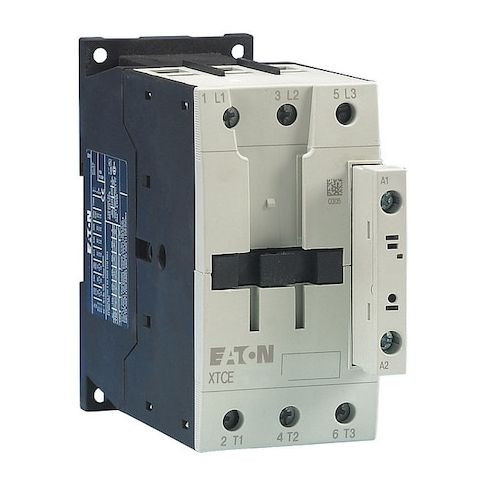

IEC Magnetic Contactor, No Auxiliary Contacts, 480V AC, 3 P, Non-Reversing, Screw MPN:XTCE050D00C

• The Eaton XT IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within the specified IEC standards. It uses a 480V AC coil to operate with a 50A rating and has no auxiliary contacts. The device is a DIN Rail/Panel-mount IEC frame D contactor with screw terminals and no enclosure (NEMA No Enclosure), rated for operation at voltages up to 690V AC and frequencies of 50/60 Hz. It carries multiple certifications (IEC 60947

• EN 60947
• UL Listed
• CSA Certified
• CE Marked
• RoHS) and is identified as Eaton XT IEC contactor.

  - Action: Non-Reversing

• - Number of Poles: 3
• - Amperage Rating: 50A
• - Coil Voltage / Coil Volts: 480V AC
• - Aux. Contact Configuration / Form: No Auxiliary Contacts
• - Contact Configuration: 0 NO, 0 NC
• - Mounting Style: DIN Rail, Panel
• - Frame Size / Series: Frame D / XT
• - Termination: Screw Terminals
• - Enclosure: No Enclosure
• IP20
• - Maximum Voltage Rating: 690V AC
• - Embedded Surge Suppressor: Yes
• - Certifications / Standards: IEC 60947
• EN 60947
• UL Listed
• CSA Certified
• CE Marked
• RoHS
• - Mechanical Durability: 10,000,000 cycles
• - Electrical Operating Durability: 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
• - Frequency: 50/60 Hz
• - Reversing: No
