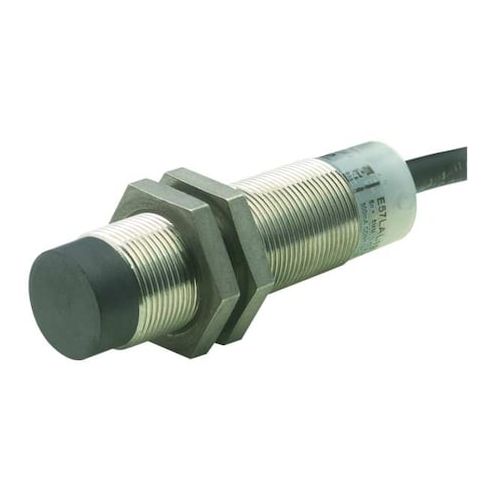

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E57-18LE20-C1
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded
This 18mm diameter inductive proximity sensor is a reliable solution for detecting objects in a variety of applications, including industrial automation, material handling, and robotics. Its stainless steel construction and IP67/IP69K rating ensure durability and resistance to harsh environments. With a 2m cable and 3-wire NPN output, it can be easily integrated into existing systems. The sensor can detect objects up to 20mm away and operates within a wide temperature range. Ideal for use in food processing, pharmaceutical, and chemical industries, this sensor provides accurate and consistent detection for improved productivity and efficiency.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Operating frequency of 500 Hz provides reliable detection of metal objects
- Output circuit type is 3 Wire NPN, suitable for use in a wide range of industrial applications
Top product applications:
- Industrial Automation
- Automotive Manufacturing
- Medical Device Assembly
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 6 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 20 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 66 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 1.80
- Package Height: 6.20
- Package Weight: 0.37
Product info last updated on January 13, 2026 1:47pm UTC
Category: Industrial Electrical Controls and Automation
