IEC Magnetic Contactor, No Auxiliary Contacts, 240V AC, 3 P, Non-Reversing, Screw MPN:XTCE050D00B
Free Shipping
In Stock

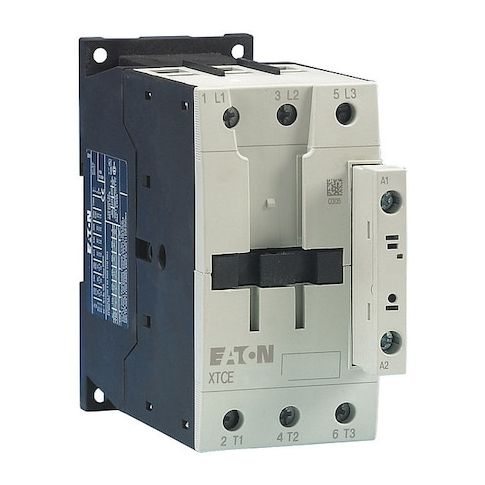

The Eaton XT IEC contactor is a reliable and efficient solution for a variety of industrial applications. Its 3-pole design and 240V AC coil make it suitable for use in control circuits, while its non-reversing operation ensures consistent and safe performance. With a high amperage rating and embedded surge suppression, this contactor provides reliable switching and protection for equipment. It is ideal for use in manufacturing, oil and gas, and other industries where reliable control is critical. Its compact design and DIN rail mounting make it easy to integrate into existing systems, providing a seamless and efficient solution for control needs.
Top product features:
- Non-Reversing action
- Embedded Surge Suppressor
- Screw terminals for electrical connection
Top product applications:
- Motor Control Circuits
- Industrial Control Systems
- Electrical Panel Boards
The Eaton XT IEC contactor is a 3-pole IEC magnetic contactor (Frame D, Series XT) with a 240 V AC coil. It is configured for non-reversing operation and does not include auxiliary contacts. The unit uses screw terminals for electrical connection and is designed for mounting on DIN rails or panels, with no enclosure. It is rated for up to 50 A full-load current (inductive) and 80 A resistive at a maximum voltage of 690 V AC
- includes embedded surge suppression. Mechanical/electrical lifecycle specifications are provided by the manufacturer.
Key features
- - Product name: Eaton XT IEC contactor
- - Action: Non-Reversing
- - Reversing: No
- - Poles: 3
- - Coil Voltage: 240 V AC
- - Amperage rating: 50 A
- - Full Load Amps: Inductive 50 A
- Resistive 80 A
- - Maximum voltage rating: 690 V AC
- - Electrical connection: Screw Terminals
- - Mounting style: DIN Rail, Panel
- - Frame/Series: Frame D
- XT
- - Includes Auxiliary Contacts: No
- - Number of Auxiliary Contacts: 0
- - Embedded Surge Suppressor: Yes
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Certifications: UL Listed
- CSA Certified
- IEC 60947
- EN 60947
- - Compliances: CE Marked
- - Operating temperature range: -13°F to 122°F
- - Frequency: 50/60 Hz
- - Mechanical durability: 10,000,000 cycles
