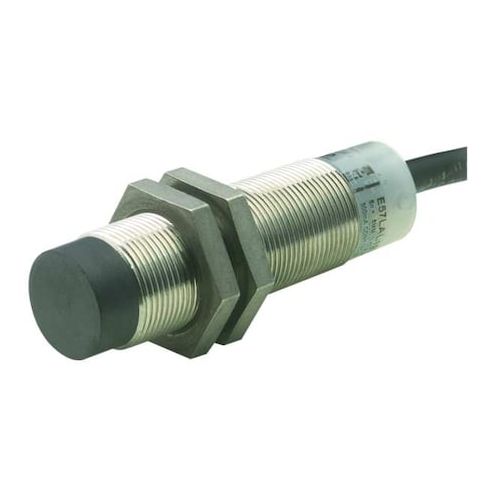

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, Micro, 2 Wires, Unshielded MPN:E57-18LE20-A1A
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, Micro, 2 Wires, Unshielded
This inductive proximity sensor is a reliable solution for detecting objects in industrial settings. Its cylindrical design and stainless steel construction ensure durability and resistance to harsh environments. With a detection distance of 20 mm and operating frequency of 20 Hz, it accurately detects objects with minimal interference. Suitable for use in applications such as conveyor systems, material handling, and machinery, this sensor provides a 2-wire output and operates within a wide temperature range of -13 to 158°F. Its compact design and NEMA rating of 12, 13, 4, 4X, 6, and 6P make it an ideal choice for various industrial settings.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Detects objects up to 20 mm away using inductive technology
- Operates in a wide temperature range from -13°F to 158°F
Top product applications:
- Industrial Automation
- Automotive Parts Detection
- Food Processing Equipment
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 20 to 132V AC, Unshielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 20 mm, Proximity Sensor Electrical Connection 3 Pin Micro AC Connector, Output Mode NC, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 69 mm, Operating Temp. Range -13 Degrees to 158 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.70
- Package Height: 3.20
- Package Weight: 0.13
Product info last updated on January 13, 2026 1:40pm UTC
Category: Industrial Electrical Controls and Automation
