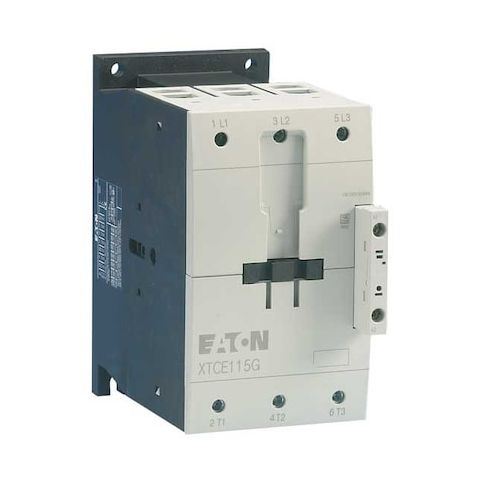

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 3 P, Non-Reversing, Screw MPN:XTCE150G00T
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for controlling electrical circuits in industrial and commercial applications. Its 3-pole design and 24V AC coil make it suitable for use in a variety of settings, including control panels, machinery, and equipment. The contactor's non-reversing action and screw terminals provide easy installation and operation, while its IP20 ingress protection rating ensures reliable performance in harsh environments. Ideal for use in factories, warehouses, and other industrial settings, the Eaton XT IEC contactor offers a durable and long-lasting solution for controlling electrical circuits.
Top product features:
- The Eaton XT IEC contactor has a 3-pole non-reversing action.
- It is rated for operation within the specified voltage and current ranges.
- It has an IP20 ingress protection rating.
Top product applications:
- Industrial Control Panels
- Motor Control Centers
- Power Distribution Units
The Eaton XT IEC contactor is a 3-pole, non-reversing IEC Magnetic Contactor with a 24 V AC coil. It has no auxiliary contacts and uses screw terminals. It is frame size G (XT series) and is rated for operation within the specified voltage and current ranges. The unit offers an IP20 ingress protection rating and does not include an enclosure.
- Item type: IEC Magnetic Contactor (3-pole), XT Series, Frame G
- - Action: Non-Reversing
- - Coil Voltage: 24 V AC
- - Amperage Rating: 150 A (Full Load, Inductive)
- 190 A (Full Load, Resistive)
- - Aux Contacts: No Auxiliary Contacts
- - Contact Configuration: 0 NO, 0 NC
- - Mounting Style: DIN Rail, Panel
- - Electrical Connection: Screw Terminals
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - Enclosure: Does not include an enclosure
- - IP Rating: IP20
- - Certifications: UL Listed
- CSA Certified
- CE Marked
- EN 60947
- IEC 60947
- RoHS
- - Temperature Range: -13°F to 122°F
- - Mechanical Durability: 10,000,000 cycles
- - Electrical Durability: 300 (AC-4 400V Ie)
- 800 (AC-1 400V Ie)
- 800 (AC-3 400V Ie)
- - Dimensions: Width 4.37 in
- Height 6.69 in
- Depth 6.30 in
- - Product Name: Eaton XT IEC contactor
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 7.40
- Package Height: 3.90
- Package Weight: 5.20
