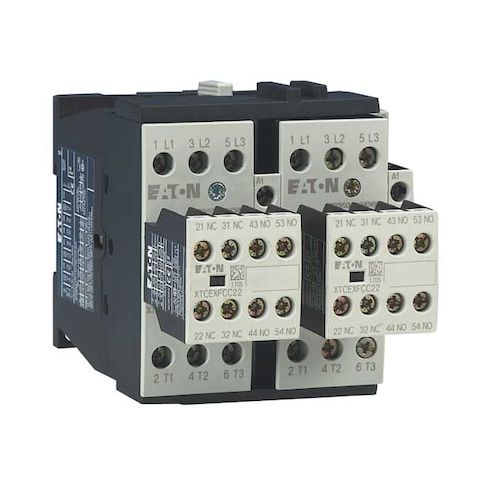

IEC Magnetic Contactor, 1NC/2NO, 24V AC, 3 P, Reversing, Screw MPN:XTCR032C21T

• The Eaton XT IEC contactor is a 3-pole IEC magnetic contactor with a 24 V AC coil and reversing action. It is rated for operation within the specified voltage and current ranges and contains auxiliary contacts

• surge suppression features are as specified by the manufacturer. The device uses screw terminals, has no enclosure, and has an IP20 ingress protection rating as per standard classification.

  Key features

• - Product name/type: Eaton XT IEC contactor
• IEC Magnetic Contactor
• Type: Full voltage reversing contactor
• Reversing action: Reversing
• - Coil and electrical: Coil voltage 24 V AC
• Frequency 50/60 Hz
• Frequency rating 50-60 Hz
• - Electrical capacity: Amperage rating 32 A (Full Load Inductive)
• 45 A (Full Load Resistive)
• - Poles and contacts: Number of poles 3
• Contact configuration 2 NO, 2 NO
• Auxiliary contacts: Yes (4 total
• Aux. contact config 2NO/1NC
• Aux form 1NC/2NO)
• - Certifications/compliances: Certifications: CSA Certified
• EN 60947
• UL Listed
• IEC 60947
• CE Marked
• RoHS
• - Mechanical/ enclosure: Frame/Series/Code XT
• Frame Size C
• Mounting style DIN Rail, Panel
• Enclosure NEMA No Enclosure
• IP rating IP20
• - Termination and mounting: Electrical connection Screw
• Mounting hole diameter 0.16 in
• Mounting hole distance (height) 2.95 in
• Mounting hole distance (width) 1.77 in
• - Dimensions: Height 4.5 in
• Width 7.5 in
• Depth 4.75 in
