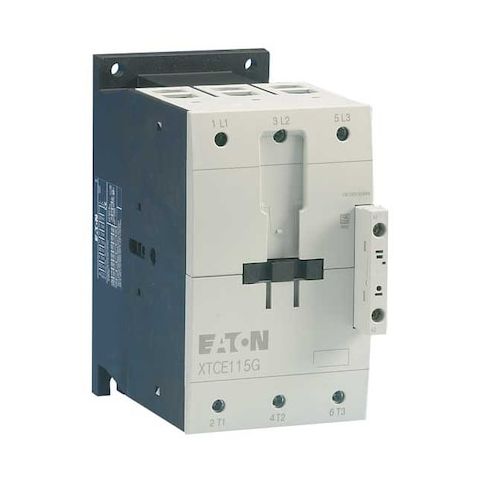

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw MPN:XTCE150G00TD
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for controlling 3-pole circuits in industrial applications. Designed for use in non-reversing applications, this contactor features a 24V DC coil and screw terminals for easy installation. With a maximum voltage rating of 690V AC and full load current ratings of 150A inductive and 190A resistive, it provides consistent performance in a variety of settings. Suitable for use in DIN Rail and panel mounting, this contactor is ideal for applications in the manufacturing, oil and gas, and power generation industries, where reliability and efficiency are paramount.
Top product features:
- 3-pole magnetic contactor operation
- Non-reversing action
- 24V DC coil operation
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- HVAC Control Systems
The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor (Frame G) with a 24 V DC coil and screw terminals. It has no auxiliary contacts (0 NO/0 NC) and belongs to the XT series. The device has a maximum voltage rating of 690 V AC
- full load current ratings are specified as 150 A inductive and 190 A resistive under standard test conditions.
- Poles: 3
- - Action: Non-Reversing
- Reversing: No
- - Coil voltage: 24 V DC
- - Coil terminals: Screw
- - Auxiliary contacts: No
- - Frame/Series: XT
- Frame size: G
- - Mounting style: DIN Rail, Panel
- - Enclosure: No Enclosure
- IP rating: IP20
- - Maximum voltage rating: 690V AC
- - Full Load Amps: Inductive 150 A
- Resistive 190 A
- - Mechanical durability: 10,000,000 cycles
- - Electrical operating durability: 300 (AC-4 400V Ie)
- 800 (AC-1 400V Ie)
- 800 (AC-3 400V Ie)
- - Operating temperature: -13°F to 122°F
- - Dimensions (approx.): Width 4.37 in
- Height 6.69 in
- Depth 6.30 in
- - Certifications: UL Listed
- CSA Certified
- CE Marked
- EN 60947
- IEC 60947
- RoHS
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 3.90
- Package Height: 7.30
- Package Weight: 5.18
