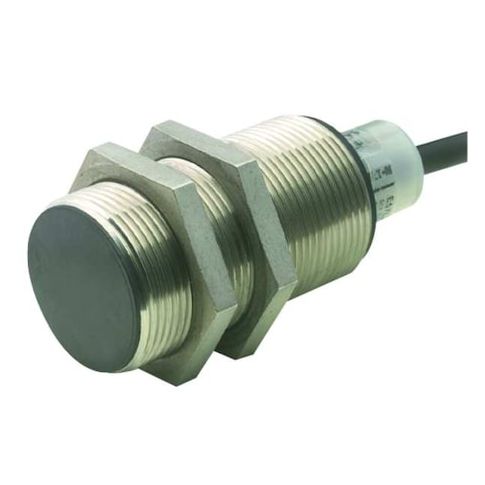

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Semi-Shielded MPN:E57-30LE22-A
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Semi-Shielded
Eaton's cylindrical inductive proximity sensor is a reliable and versatile solution for detecting objects in a variety of applications. Its semi-shielded design and stainless steel construction make it ideal for use in harsh environments, such as food processing, pharmaceutical manufacturing, and chemical plants. With a maximum detecting distance of 22mm and a frequency of 20Hz, this sensor can accurately detect objects with ease. Its compact size and NEMA rating 12, 13, 4, 4X, 6, 6P, IP67, and IP69K ratings make it suitable for use in a range of industries, including automotive and material handling.
Top product features:
- Cylindrical design allows for easy installation in tight spaces.
- Detects objects at a maximum distance of 22 mm.
- Operates at a temperature range of -13 to 158 degrees Fahrenheit.
Top product applications:
- Automotive manufacturing
- Food processing industry
- Material handling equipment
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 20 to 132V AC, Semi-Shielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 68 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 2.30
- Package Height: 6.60
- Package Weight: 0.52
Product info last updated on January 13, 2026 1:32pm UTC
Category: Industrial Electrical Controls and Automation
