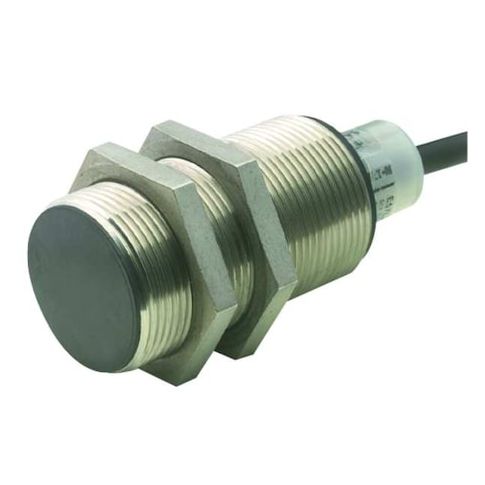

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, M12, 3 Wires, Semi-Shielded MPN:E57-30LE22-CD
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, M12, 3 Wires, Semi-Shielded
The Eaton Cylindrical Inductive Proximity Sensor is a reliable and versatile solution for detecting objects in a variety of applications. This semi-shielded sensor features a durable 303 stainless steel housing and operates within a wide temperature range, making it suitable for use in harsh environments. With a maximum detecting distance of 22 mm and a compact 30 mm diameter, it's ideal for use in tight spaces. The sensor's 3-wire NPN output and 300 Hz operating frequency provide a high level of accuracy and consistency. Suitable for use in food processing, pharmaceutical, and industrial automation applications.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Semi-shielded design provides protection from electrical noise and interference
- Detects objects up to 22 mm away with a 300 Hz operating frequency
Top product applications:
- Automotive applications
- Industrial conveyor systems
- Medical device manufacturing
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 6 to 48V DC, Semi-Shielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 4 Pin Micro DC Connector, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 70 mm, Operating Temp. Range -13 Degrees to 158 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 2.10
- Package Height: 5.20
- Package Weight: 0.32
Product info last updated on January 13, 2026 1:30pm UTC
Category: Industrial Electrical Controls and Automation
