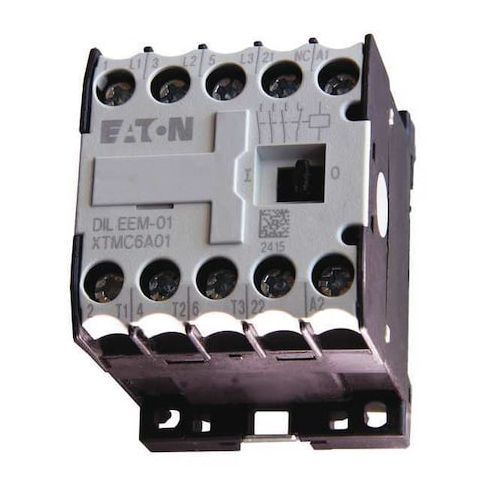

IEC Miniature Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw MPN:XTMC6A01T

• The IEC Miniature Magnetic Contactor has a 24 V AC coil, non-reversing action, and 3 poles with 1 normally-closed auxiliary contact. Screw terminals enable mounting on DIN rails or panels. Frame A, XT series

• embedded surge suppressor
• IP20 enclosure rating
• no enclosure. The unit's maximum voltage rating is specified as up to 690 V (AC/DC).

  Key features

• - Action: Non-Reversing
• - Poles: 3
• - Coil Voltage: 24 V AC
• - Auxiliary Contacts: 1 NC
• - Embedded Surge Suppressor: Yes
• - Mounting Style: DIN Rail, Panel
• - Terminal Connection Type: Screw
• - Frame Size / Series: Frame A, XT
• - Frequency: 50/60 Hz
• - Maximum Voltage Rating: 690V AC/DC
• - IP Rating: IP20
• - Enclosure: No Enclosure
• - Mechanical Durability: 10,000,000 cycles
• - Operating Temperature: -13 to 122 Degrees F
• - Dimensions: Height 2.28 in, Width 1.77 in, Depth 3.27 in
• - Mounting Hole Diameter: 0.16 in
• Distances: Height 1.98 in, Width 1.38 in
• - Phase: Three
• - Standards: CCC, CSA, EN/IEC 60947, UL Listed, VDE 0660
