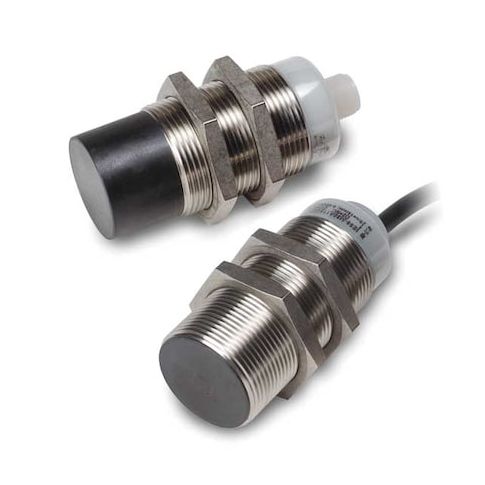

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded MPN:E59-M30C129C02-A1
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded
The Eaton Cylindrical Inductive Proximity Sensor is a reliable and versatile solution for detecting objects in harsh environments. Its 30 mm diameter and 69 mm length make it ideal for use in tight spaces, while its 303 stainless steel construction ensures durability in extreme temperatures (-40°F to 158°F). With a maximum detecting distance of 29 mm and a 2-wire output circuit, this sensor is perfect for applications in food processing, pharmaceuticals, and other industries where cleanliness and precision are crucial. Its IP67 and IP69K ratings also make it suitable for use in wet or corrosive environments.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Operates at a frequency of 30 Hz for reliable detection
- Detects objects up to 29 mm away for increased sensing range
Top product applications:
- Machine Guarding
- Automated Material Handling Systems
- Conveyor Belt Monitoring
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 20 to 132V AC, Unshielded, Proximity Sensor Operating Frequency 30 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 29 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 69 mm, Operating Temp. Range -40 Degrees to 158 Degrees F, Max. Current Load 250mA
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 5.10
- Package Height: 1.90
- Package Weight: 0.50
Product info last updated on January 13, 2026 12:00pm UTC
Category: Industrial Electrical Controls and Automation
