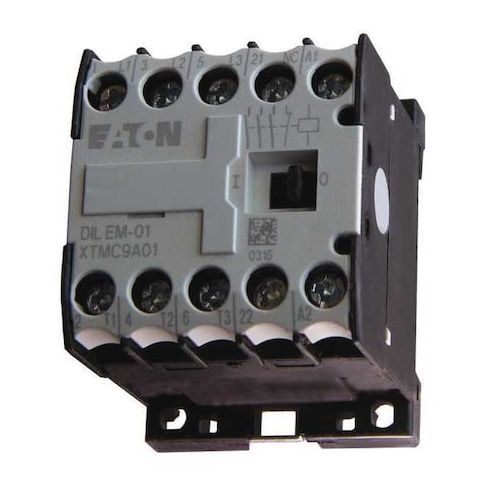

IEC Miniature Magnetic Contactor, 1NC, 24V DC, 3 P, Non-Reversing, Screw MPN:XTMC9A01TD
Free Shipping
In Stock
The Eaton XT IEC miniature magnetic contactor is a reliable and compact solution for a wide range of industrial applications. Suitable for non-reversing operations, this 3-pole contactor features a 24V DC coil and screw terminals, supporting DIN Rail or panel mounting configurations. With an embedded surge suppressor and UL Listed, CSA Certified, CE Marked, and RoHS compliant, this contactor ensures safe and efficient operation. Ideal for use in control panels, machines, and automation systems, it offers a high level of mechanical durability with 20 million cycles and operates within a wide temperature range of -13°F to 122°F.
Top product features:
- The Eaton XT IEC mini contactor is non-reversing, meaning it will only operate in one direction within its specified design parameters.
- It has a 24 V DC coil, allowing for operation with a specific type of power source.
- It features screw terminals for electrical connections, supporting easy and secure installation.
Top product applications:
- Control Panel
- Power Distribution
- Industrial Automation
The Eaton XT IEC mini contactor is an IEC miniature magnetic contactor with 3 poles and a 24 V DC coil. The contactor is rated for non-reversing operation within its specified design parameters. The device features screw terminals and supports DIN Rail or Panel mounting options
- it does not include an enclosure.
- Action: Rated for non-reversing operation within specified conditions.
- - Coil Voltage: Rated coil voltage: 24 V DC (within manufacturer specifications).
- - Poles / Contact Configuration: Configured with 3 poles and one normally closed auxiliary contact (1NC).
- - Auxiliary Contacts: Contains one auxiliary contact of form 1NC, as specified by the manufacturer.
- - Amperage Rating / Full Load: Rated for full load currents up to these values under standard testing conditions.
- - Maximum Voltage Rating: Suitable for applications up to a maximum voltage of approximately this value, per ratings listed in specifications.
- - Frequency: Designed to operate at standard power frequencies of either 50 Hz or 60 Hz within rated conditions.
- - IP Rating: Has an ingress protection rating of IP20, indicating limited dust protection but no water resistance.
- - Enclosure: Does not include an enclosure
- suitable for installation in appropriate enclosures or panels according to standards.
- - Mounting Style / Position: Supports DIN Rail or panel mounting configurations in vertical orientation as per installation guidelines.
- - Electrical Connection: Screw
- - Embedded Surge Suppressor: Yes
- - Frame / Series: XT
- Frame Size: A
- - Certifications: UL Listed
- CSA Certified
- CE Marked
- EN 60947
- IEC 60947
- RoHS
- - Dimensions: Width 1.44 in
- Height 2.28 in
- Depth 1.79 in
- - Operating Temperature: -13°F to 122°F
- - Mechanical Durability: 20,000,000 cycles
- - Item / Product Name: IEC Miniature Magnetic Contactor
- Eaton XT IEC mini contactor
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.90
- Package Height: 2.40
- Package Weight: 0.48
