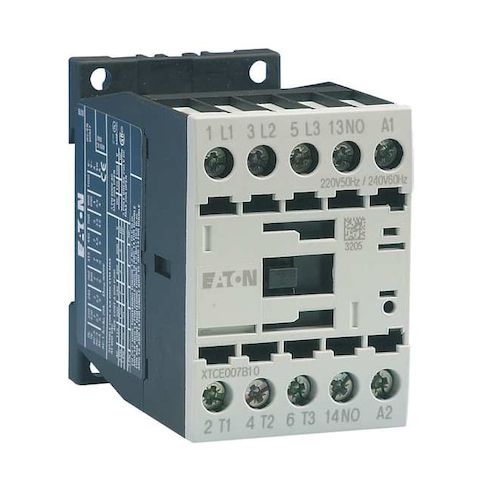

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:XTCE007B10T
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control systems, motor control, and power distribution. Its 24V AC coil and 3-pole design make it ideal for use in high-voltage environments, while its non-reversing action ensures safe and controlled operation. The contactor's screw terminals and DIN rail mounting make it easy to install and integrate into existing systems. With certifications from UL, CSA, and CE, this contactor meets the highest standards for safety and performance, making it a trusted choice for professionals in various industries.
Top product features:
- The Eaton XT IEC contactor is a 3-pole, non-reversing contactor.
- It features a 24V AC coil for operation.
- It includes one normally open auxiliary contact.
Top product applications:
- Control Panel
- Motor Control
- Relay Panel
The Eaton XT IEC contactor is an IEC magnetic contactor rated for operation within specified electrical parameters. It is a 3-pole, designed as a non-reversing contactor with a 24V AC coil and one normally open auxiliary contact
- it uses screw terminals for wiring.
- Action: Designed as a non-reversing contactor
- - Coil Voltage: 24V AC
- - Poles: 3
- - Contact Configuration: 1 NO
- - Auxiliary Contacts: 1 NO
- - Frame Size / Series: B / XT
- - Mounting Style: DIN Rail, Panel
- - Electrical Connection: Screw Terminals
- - Contactor Type: Rated for operation at specified voltages and configurations
- - Maximum Voltage Rating: 690V AC
- - IP Rating: IP20
- - Enclosure: Open device (no enclosure)
- - Includes Auxiliary Contacts: Yes
- - Certifications/Standards: UL Listed
- CSA Certified
- EN 60947
- IEC 60947
- CE Marked
- RoHS
- - Operating Temperature: -13 to 122 Degrees F
- - Mechanical Durability: Mechanical lifespan based on typical usage conditions
- - Electrical Operating Durability: Electrical durability ratings under specified test conditions
- - Embedded Surge Suppressor: Yes
- - Dimensions: Width 1.77 in
- Height 2.68 in
- Depth 4.92 in
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 2.00
- Package Height: 3.20
- Package Weight: 0.54
