IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Reversing, Screw MPN:XTCR065D11C
Free Shipping
In Stock

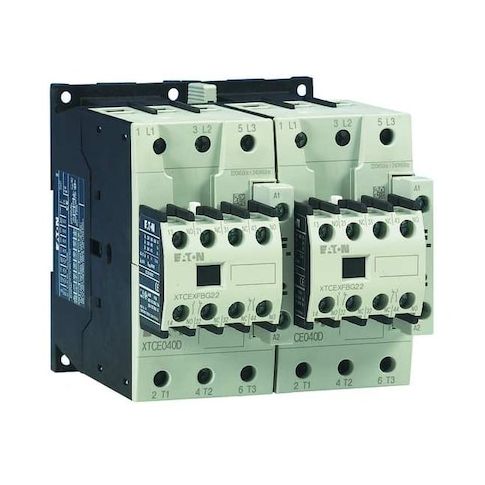

The Eaton XT IEC Magnetic Contactor is a reliable and efficient switching device ideal for various industrial applications. With its 3-pole reversing functionality, it can handle a wide range of tasks, from motor control to lighting systems. Rated for 480V AC and 65A, this contactor provides a high level of performance and durability. Its compact design and DIN Rail/panel mounting capabilities make it easy to integrate into existing systems. Additionally, its IP20 rating and certifications ensure compliance with industry standards, making it a great choice for applications in harsh environments, such as manufacturing, oil and gas, and heavy industry.
Top product features:
- The Eaton XT IEC contactor is a 3-pole reversing device rated for operation at up to 480 V AC.
- It contains auxiliary contacts with standard configurations (1NO/1NC).
- It features an integrated surge suppression component.
Top product applications:
- Industrial Control Systems
- Automotive Electrical Systems
- Power Generation and Distribution
The Eaton XT IEC contactor is an IEC magnetic contactor (electrically operated switching device) rated for operation within specified electrical parameters. It is a 3-pole reversing device rated for operation at up to 480 V AC and 65 A within its specified ratings. It contains auxiliary contacts with standard configurations (1NO/1NC), is equipped with screw terminal connections suitable for wiring according to applicable standards, and features an integrated surge suppression component (note: does not guarantee protection). The unit has an IP20 ingress protection rating indicating limited dust protection but no water resistance and is mounting-compatible with DIN Rail or panel installations, belonging to the XT series with Frame D. Dimensions provided are approximate
- actual measurements may vary slightly.
- Action: Reversing
- - Amperage Rating: 65A
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Coil Voltage: 480 V AC
- - Frame / Series: Frame D, XT series
- - Poles: 3
- - Mounting Style: DIN Rail, Panel
- - Electrical Connection: Screw Terminals
- - Embedded Surge Suppressor: Yes
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Certifications / Standards: EN 60947
- IEC 60947
- CSA Certified
- UL Listed
- CE Marked
- RoHS
- - Maximum Operating/Temperature Range: -13 to 122 Degrees F
- - Width x Height x Depth: Dimensions provided are approximate
- actual measurements may vary slightly
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 6.40
- Package Height: 5.70
- Package Weight: 4.68
