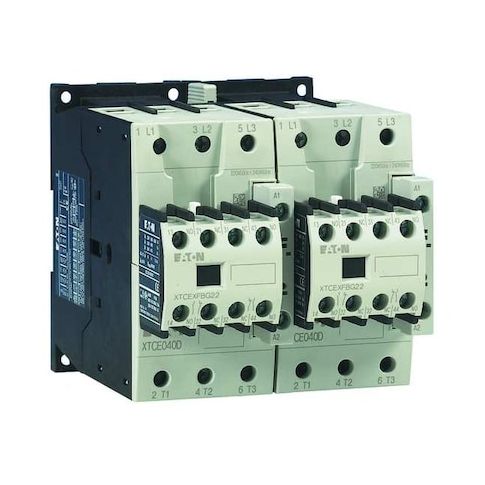

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Reversing, Screw MPN:XTCR040D11E
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a versatile and reliable switching device designed for controlling power circuits in a variety of applications. Suitable for use in industrial settings, it provides a reversing action, allowing for seamless control of motor direction. With a 208V AC coil and screw terminals, this contactor is easy to integrate into existing systems. Its compact size and IP20 ingress protection rating make it ideal for DIN rail or panel mounting. Ideal for applications such as conveyor systems, pumps, and fans, this contactor offers reliable performance and efficient operation, reducing downtime and increasing overall system productivity.
Top product features:
- Reversing action (full voltage reversing contactor)
- Has 1NO/1NC auxiliary contacts (2 total)
- Has a 3-pole configuration with a 208 V AC coil and screw terminals
Top product applications:
- Industrial Automation Systems
- Electrical Panelboards and Motor Control Centers
- Machine Tools and Robotics
The Eaton XT IEC contactor is an IEC magnetic switching device used to control power circuits. It is a 3-pole reversing contactor with a 208 V AC coil and screw terminals, configured with 1NO/1NC auxiliary contacts (2 total). It is rated for operation within the specified current ratings for inductive and resistive loads, and certified to applicable standards (see specific standards). The unit is compatible with DIN rail or panel mounting as specified and has an IP20 ingress protection rating per standard definitions, within the XT series and frame size D.
- Function: Reversing action (full voltage reversing contactor)
- - Coil voltage: 208 V AC
- - Poles: 3
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Contact configuration: 1 NO, 1 NC
- - Reversing capability: Reversing
- - Full-load amps: Inductive 40 A
- Resistive 60 A
- - HP rating (3-phase, 208V): 10 hp
- - Frame/Series: Frame D
- Series XT
- - Mounting: DIN Rail, Panel
- hole Ø0.16 in
- spacing 4.13 in (height) and 1.77 in (width)
- - Enclosure/IP: has an IP20 ingress protection rating per standard definitions
- - Terminals: Screw
- - Certifications/Standards: certified to applicable standards (see specific standards)
- - Dimensions: Dimensions are provided for reference
- actual installation should consider space requirements
- - Frame width: 4.33 in
- - Operating temperature: -13°F to 122°F
- - Includes auxiliary contacts: Yes
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 6.40
- Package Height: 5.80
- Package Weight: 4.68
